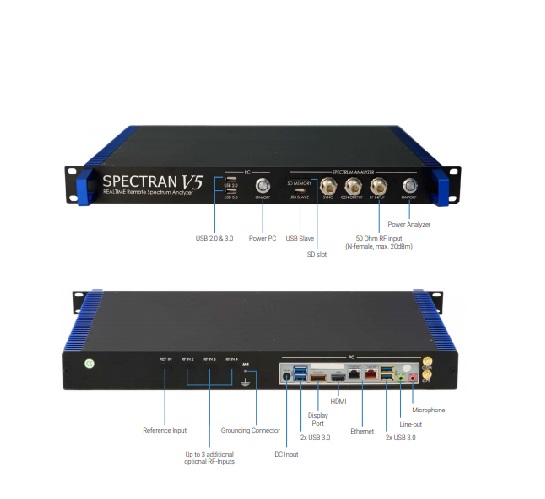

Aaronia 80200 V5RSA Real-Time Spectrum Analyzer & Recorder (9kHz ~ 20GHz)

Frequency Range (min): 9kHz (optional 1Hz with Option 003)
Frequency Rance (max): 20GHz
Real-Time Bandwidth: 88MHz (opt. 160/175MHz)
Minimum Event Duration for 100% POI : <1µS
Max. Power at RF input (50 Ohm) +20dBm (+33dBm*)
Displayed Average Noise Level (internal pre-amp on) typ. -150dBm/Hz
Amplitude accuracy (typ.) typ. +/- 1,5dB
RF input 50 Ohm (SMA-connector)
RBW (resolution bandwidth) 1Hz to 3MHz
VBW (video bandwidth) 1Hz to 3MHz
Demodulator AM, FM
Measurement Units dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm²
Detector Min, Max, AVG, Peak (QPeak in preparation)
Attenuator range 45dB (0,5dB steps, incl. pre-amp)
Traces ACT, AVG, MAX, MIN
Video RAM 64 MB
SDRAM 256 MB
Dimensions 480 x 370 x 44mm
Weight 4.8Kg
Power Supply AC Input: AC Input: 100-240V, 50-60Hz - DC Output: 19V, 5,25A
