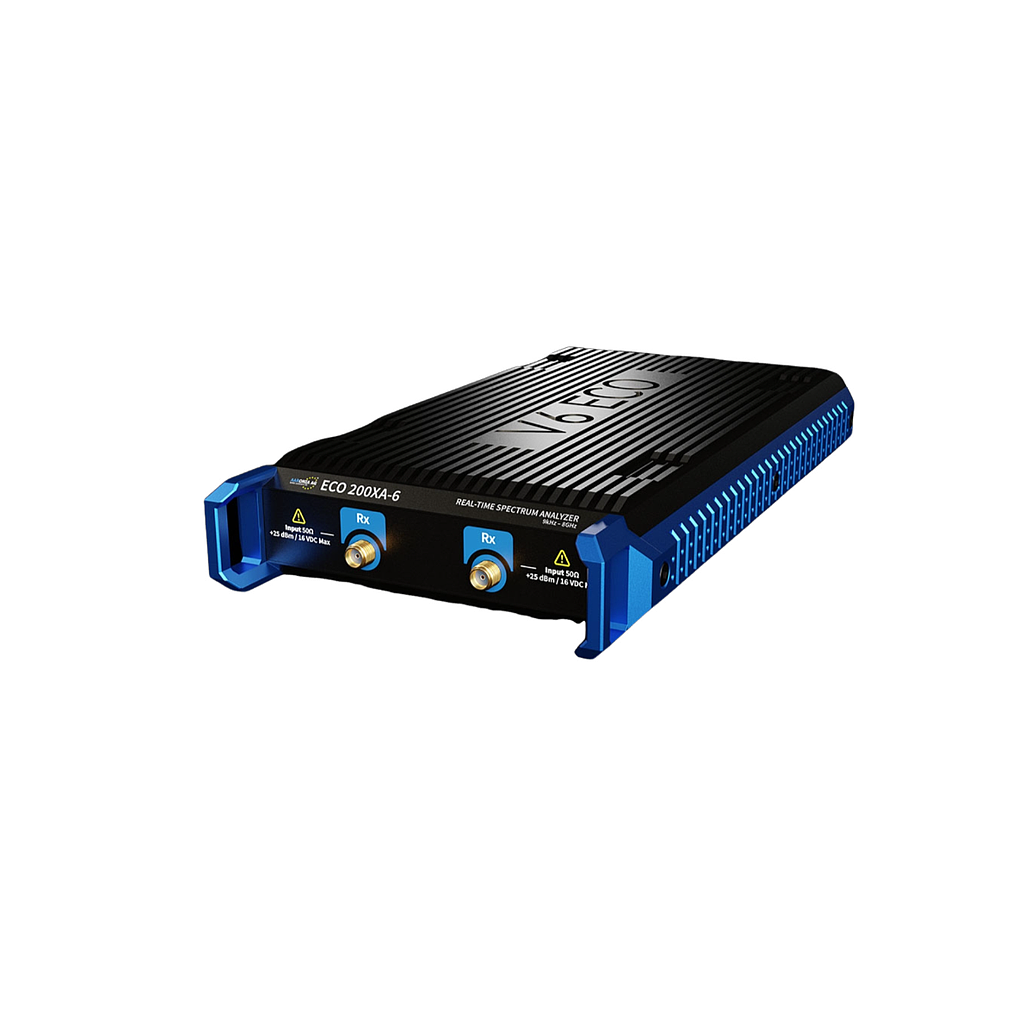

AARONIA SPECTRAN V6 ECO 200XA-6 Real-Time Spectrum Analyzer (2x 44 MHz, 500 GHz/s, 2 Rx)

RTBW: 2x 44 MHz (dual LO)

Speed: 500 GHz/s (optional 3THz/s)

I/Os: 2 Rx

Frequency range: 9kHz to 6 | 7.25 GHz

Real-time bandwidth Rx: up to 88 (2 x 44) MHz via 1x USB

Real-time bandwidth Tx: 44 MHz (device dependent)

Max. power Rx: +23 dBm

Max. power Tx: +10 dBm

DANL (internal pre-amp on): Typ. -170 dBm/Hz

Amplitude accuracy (typ.): Typ. +/- 0,5 dB (compensated by FIR filter)

USB streaming connection: 1x USB3

Frequency reference accuracy: 0.5 ppm (5 ppb via OCXO option)

RBW (resolution bandwidth): 62 mHz to 200 MHz

Measurement units: Over 20 (e.g. dBm, dBμV, V/m, A/m, W/m², dBμV/m, W/cm²)

Detector: Min, Max, AVG, Peak, QPeak

Attenuator range: 50 dB / 70 dB (0,5 dB steps)

Traces: Over 20 (e.g. ACT, AVG, MAX, MIN, QPEAK)

Measurement modes: True IQ or Power/Frequency data

Trigger: Cursor, Measurement, Density

ADC: 2GSPS 16 Bit

DAC: 2GSPS 14 Bit

GPS: GPS/QZSS, GLONASS, BeiDou and Galileo (concurrent reception)

GPS synchronisation: +/- 10ns timestamping in each data packet

External Frequency Reference Input: typ. 10MHz, 3,5VRMS into 50 Ohm (SMB-connector)

DSP processing: 930 GMACs

SDRAM: 2 GB

RF connectors: SMA (Rx,Tx), SMB (Trigger, Refclock, GPS, PPM). All 50 Ohms.

Temperature range (operation): 0 °C to +50 °C (extended -40 to +75 °C)

Dimensions: 210 x 115 x 30 mm

Power: USB 3.2 Gen 1 Type-C PD 3.0

Power consumption: Typical 10 W
