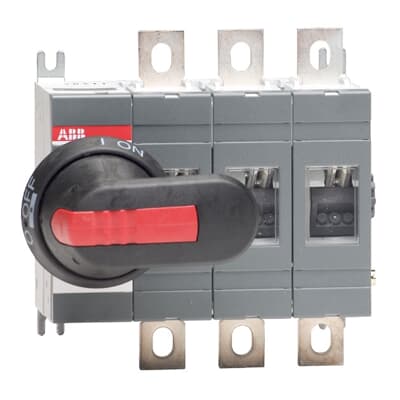

Dimensions
Product Net Width: 145.5 mm
Product Net Height: 150 mm
Product Net Depth / Length: 82.5 mm
Product Net Weight: 1.4 kg
Technical
Rated Operational Current AC-21A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
(1000 V) 250 A
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe):
(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Conventional Free-air Thermal Current (Ith): θ = 40 °C 250 A
Conventional Thermal Current (Ithe): Fully Enclosed 250 A
Rated Impulse Withstand Voltage (Uimp): 12 kV
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 1000 V
Rated Operational Voltage: Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm): (690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw): for 1 s 8 kA
Rated Conditional Short-Circuit Current (Inc):
(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Power Loss: at Rated Operating Conditions per Pole 6.5 W
Pollution Degree: 3
Handle Color: Black
Handle Type: Handle and shaft included
Switches Operating Mechanism: Mechanism at the End of the Switch
Distance Between Phases: 03 (Left Side) Standard
Position of Line Terminals:
Top In - Bottom Out
Bottom In - Top Out
Operating Mode: Front operated
