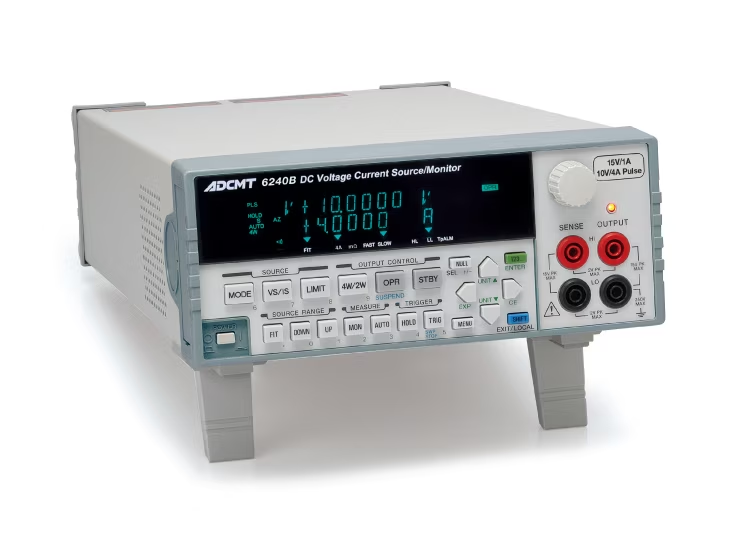

ADCMT 6240B DC Voltage Current Source/Monitor (±15V/1A)
Manufacturer: ADCMT Model: 6240B - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specifications
Number of digits for generation: 4½
Output method: Bipolar
Maximum output voltage: ±15 V/1A
Minimum voltage resolution: 10 μV
Maximum output current: ±4 A/10 V(DCで±1 A/15 V)
Minimum current resolution: 1 nA
Number of digits for measurement: 5½
Accuracy (typical range): 0.0002
Minimum measurement voltage resolution: 1 μV
Minimum measurement current resolution: 100 pA
Maximum measurement resistance / Minimum resolution: 0.75 GΩ/0.25 μΩ
Pulse application / Measurement: Available
Minimum pulse width: 50 μs
Interface: USB, GPIB
Supplied Accessories:
Power cable (JIS 2 m): 1
Input and output cable (safety plug): 1
Banana tip adapter (for A01044): 1
Alligator clip adapter (for A01044): 1
