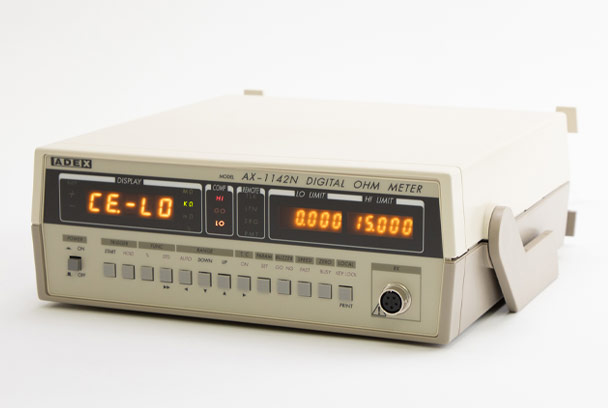

ADEX AX-1142N Digital DC ohmmeter (0.00mΩ ~ 10MΩ±50.0％)

Range Measuring range Resolution Measuring current Accuracy

100mΩ0.00mΩ～150.00mΩ10μΩ 100mA within ±0.05% of rdg ±3digit

1000mΩ 0.0mΩ～1500.0mΩ 100μΩ 10mA within ±0.05% of rdg ±3digit

10Ω 0.000Ω～ 15.000Ω 1mΩ 10mA within ±0.025％ of rdg ±3digit

100Ω 0.00Ω～ 150.00Ω 10mΩ 5mA within ±0.025％ of rdg ±3digit

1kΩ 0.0Ω～ 1500.0Ω 100mΩ 5mA within ±0.025％ of rdg ±3digit

10kΩ 0.000kΩ～ 15.000kΩ１Ω 500μA within ±0.025％ of rdg ±3digit

100kΩ 0.00kΩ～ 150.00kΩ10Ω 50μA within ±0.025％ of rdg ±3digit

1000kΩ 0.0kΩ～ 1500.0kΩ 100Ω 5μA within ±0.025％ of rdg ±3digit

10MΩ 0.000MΩ～15.000MΩ1kΩ 0.5μA within ±0.05% of rdg ±3digit

％ 5mΩ～10MΩ±50.0％0.1％ [5μΩ] Refer to the abovewithin ±0.2％±1digit

Open-circuit voltage of measuring terminal:100ｍΩ～100Ω range：less than 5V

1kΩ～10MΩ range：less than 15V

Measuring method:4-terminal measurement (Contact check available)

Sampling time: [Free running mode] 5 times per second～10 times/sec.

[Remote start mode] about 15msec.～30msec.

Comparator set range:[Ω measurement] 4½ digit, both HI and LO (15000)

[％ measurement] 50.0％ (LO：0～－50.0％, HI：0～＋50.0％)

Indication of comparator's comparison result:LED indication LO/GO/HI and buzzer

Control signal:Input：Remote start input

Remote hold input

Output：comparison signal (LO/GO/HI)

contact error signal (CE)

completion of the measurement signal (EOC)

Operation condition[Temp.]: ＋5℃～＋40℃[Humidity] less than 85%

Power supply:AC100V～240V selectable, 50/60Hz, about 30VA

Outer dimension:about 260 (W) ×90 (H) ×250 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight:about 2.6kg
