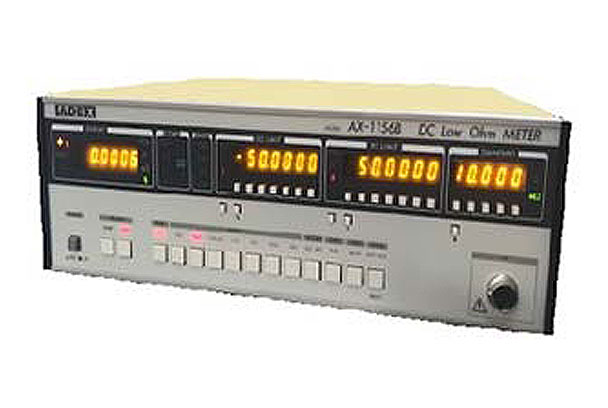

ADEX AX-1155B DC low-ohm meter (0.00mΩ ~ 10kΩ/±50.00％)

Range Measuring range Measuring current Accuracy [Slow]

100mΩ 0.00mΩ～150.00mΩ 100mA within ±0.02％rdg±10μΩ

±3digit [Average]

±4digit [Slow]

±5digit [Fast]

1Ω 0.0000Ω～ 1.5000Ω 10mA refer to above

10Ω 0.000Ω～ 15.000Ω 1mA refer to above

100Ω 0.00Ω～ 150.00Ω 1mA refer to above

1kΩ 0.0Ω～ 1500.0Ω 1mA refer to above

10kΩ 0Ω～ 15000Ω 0.1mA refer to above

％1mΩ～9.99mΩ/±50.0％ Refer to the above within [(Range/Standard) /5]×0.01％±βdigit

10mΩ～10kΩ/±50.00％ Refer to the above within [(Range/Standard) /5] ×0.01％±αdigit

Open-circuit voltage of measuring terminal:about 8V

Measuring method:4-terminal measurement (with contact check)

Sampling time:

[Free running mode] 2～9 times per second (standard setting)

[Remote start mode] about 18.6msec./31.1msec. (standard setting)

Comparator set range:

[mΩ measurement] 0～15000 both the upper and lower limit.

[％ measurement] ±50.00％ both the upper and lower limit. (Standard 100～999：±50.0％)

Indication of comparator's comparison result:LED indication LO/GO/HI and buzzer

Control signal:

Remote start input："L" [0V] →"H" [DC12V] start

Trimming signal：Open and "H" [DC12V]：Free run/"L" [0V] ：Hold

Comparison output [LO/GO/HI]：Open-collector output max.40V, 100mA

Contact error output [CE]：Open-collector output max.40V, 100mA

End of comparison output [EOC]：Open-collector output max.40V, 100mA

Operation condition: [Temp.] ＋5℃～＋40℃[Humidity] less than 85%

Power supply:AC100V～240V selectable, 50/60Hz, about 60VA

Outer dimension:about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)

Weight:about 3.8kg
