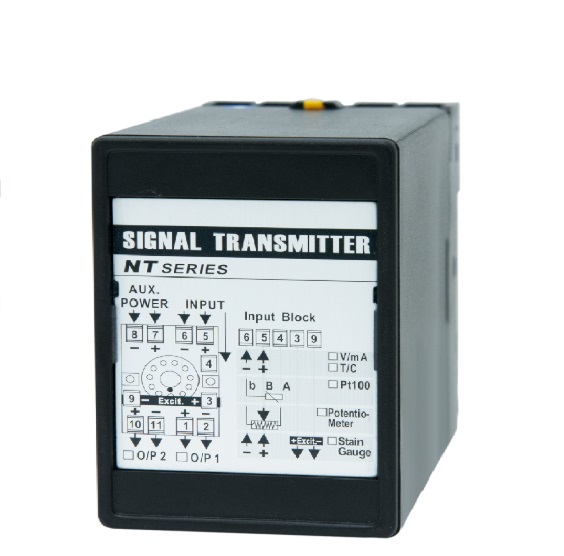

ADTEK MT-RT Potentiometer Transmitters (0~100K Ohm)
Manufacturer: Adtek Model: MT-RT - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- Measures: 3 Wire Potentiometers, 2 Wire resistances
- 6 Popular Output Ranges Programmable by dip switches
- Input range:
POTENTIOMETER: 0~50/~2.0KΩ / 0~2.0K/~200.0KΩ
RESISTANCE: 0 ~ 100 KΩ
- Input Impedance: ≥ 1MΩ
- Output Range: -10 ~ 0 ~ +10 V / 0~20mA
- Accuracy: ±0.1% of F.S.
- Response time: ≤ 250 mS
- Power Supply: AC 115 or 230V ±15%, 50/60 Hz
- Power consumption: DC 5W, AC 6.5VA
- Operating temperature: 0~60 °C
- Operating relative humidity: 20~95 %RH, non-condensing
- Dimensions: 50mm(W) x 87mm(H) x 123mm(D)-with socket
- Weight: 600g
Select the bottom ordering
Option
- Input range
- Output range
- Aux Power AC 115V or 230V
