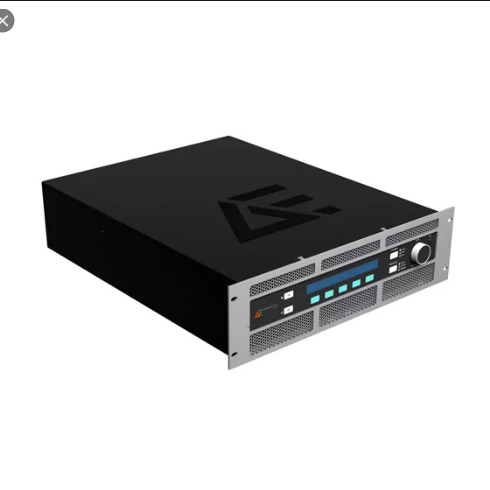

Advanced Energy Pinnacle Plus+ Pulsed-DC System (325~800V)

- Input Voltage:
200/208, 400, or 480 VAC (all ±10%)
3, 4 wire, 50 ~ 60 Hz, no neutral required
- Efficiency: >90%, >87% HALO
- Power Factor: >0.95, >0.90 HALO
- Output Voltage: 325 ~ 800 V
- Output Power Repeatability: 0.1% 10% ~ 100% of rated power (from run to run at a constant set point)
- Remote Panel or Host Port: ±1% of full-rated output
- User Port 1% or ±0.2% of full-rated output, whichever is greater
- Temperature Coefficient: <0.005%/°C variation in the regulated output parameter over 20° ~ 40°C (68° ~ 104°F) ambient temperature range
- Product Line (Overall): Specification accuracy is Cpk <1.5
- Communication Interfaces: Analog, RS-232/485, Profibus

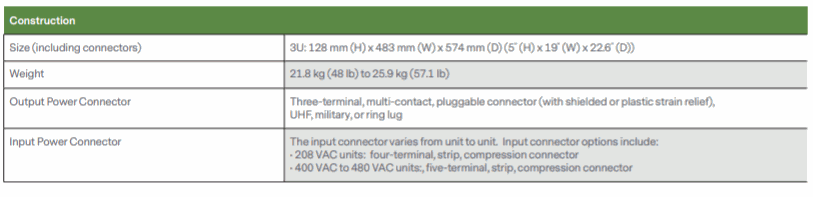

- Size (including connectors):
3U: 128 mm (H) x 483 mm (W) x 574 mm (D) (5˝ (H) x 19˝ (W) x 22.6˝ (D))
- Weight: 21.8 kg (48 lb) to 25.9 kg (57.1 lb)
- Output Power Connector: Three-terminal, multi-contact, pluggable connector (with shielded or plastic strain relief), UHF, military, or ring lug

- Input Power Connector:The input connector varies from unit to unit. Input connector options include:

• 208 VAC units: four-terminal, strip, compression connector

• 400 VAC to 480 VAC units:, five-terminal, strip, compression connector
