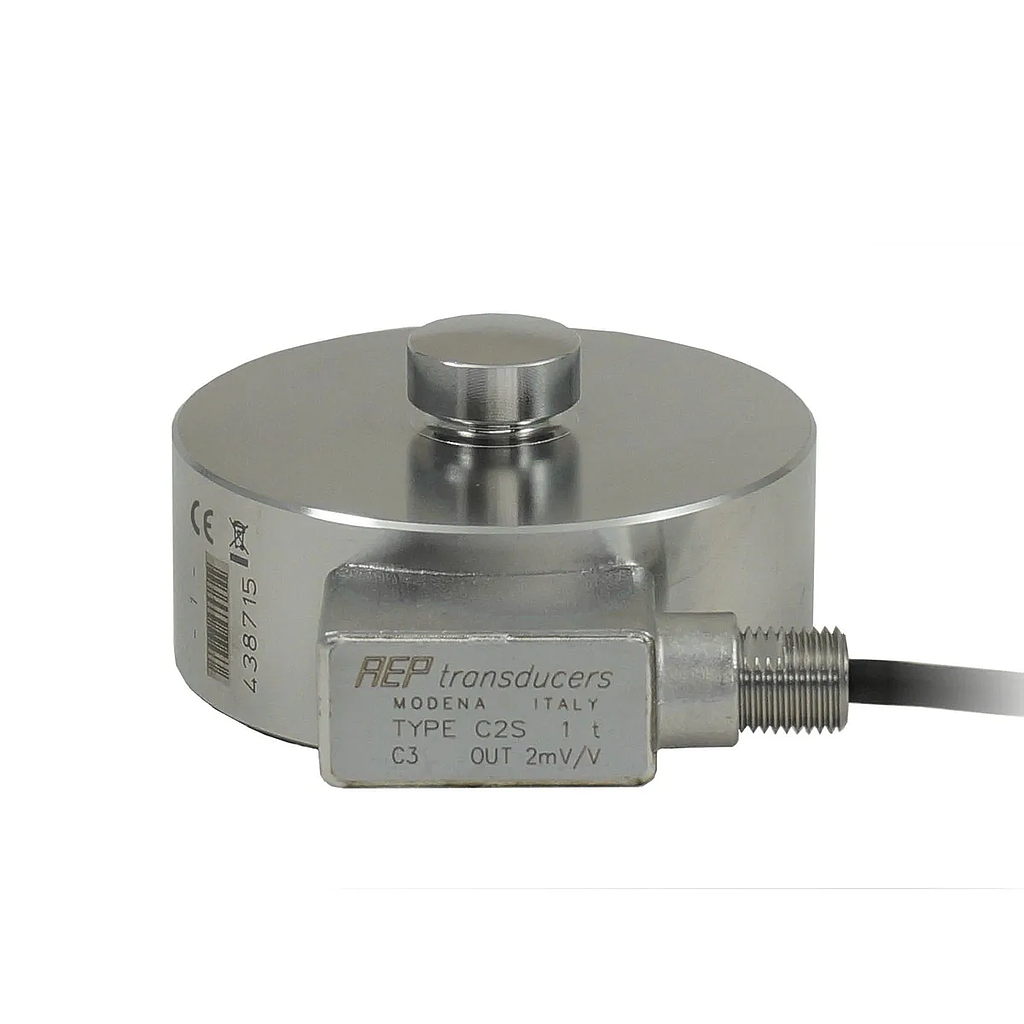

AEP Transducers C2S Load cell (OIML R60; Class C1; IP 68; 5T)

Accuracy Class: OIML R60  C1

Legal Divisions : 1000

Nominal Load (Emax): 5 T

Min. Verification Interval (Vmin) : Emax / 10000

Combined Error: ≤ ± 0.045 %

Non Repeatability: ≤ ± 0.015 %

Zero Return Over 30 Min.: ≤ ± 0.036 %

Creep At Nominal Load:

a) over 30 min.: ≤ ± 0.035 %

b) over 20 and 30 min.: ≤ ± 0.010 %

Temperature Effect (10 °C):

a) on zero: ≤ ± 0.030 %

b) on sensitivity: ≤ ± 0.030 %

Nominal Sensitivity: 2 mV/V

Calibration Tolerance: ≤ ± 0.1 %

Input Resistance: 700 ± 2 Ω

Output Resistance: 700 ± 2 Ω

Insulation Resistance: > 5 GΩ

Zero Balance: ≤ ± 1 %

Recommended Supply Voltage: 10 V

Nominal Supply Voltage: 1-15 V

Maximum Supply Voltage: 18 V

Mechanical Limit Values Referred To Nominal Load::

a) minimum load: 0

b) service load: 1.2

c) max permissible load: 1.5

d) breaking load: >300 %

e) max transverse load: 0.5

f) max permissible dynamic load: 0.5

Nominal Load: 5 T

Displacement At Nominal Load: ∼0.06mm

Reference Temperature: +23 °C

Temperature Nominal Range: -10 / +40 °C

Service Temperature: -20 / +70 °C

Storage Temperature: -20 / +80 °C

Weight : ∼1.3 kg

Protection Class (En 60529): IP68 (100h at 1m water column)

Execution Material: Acciaio Inox / Stainless Steel

Cable Length: 5 m (on request 10 m)

Fixing Screws:

a) diameter: M8

b) resistance class: 12.9

c) tightening torque: 80 Nm
