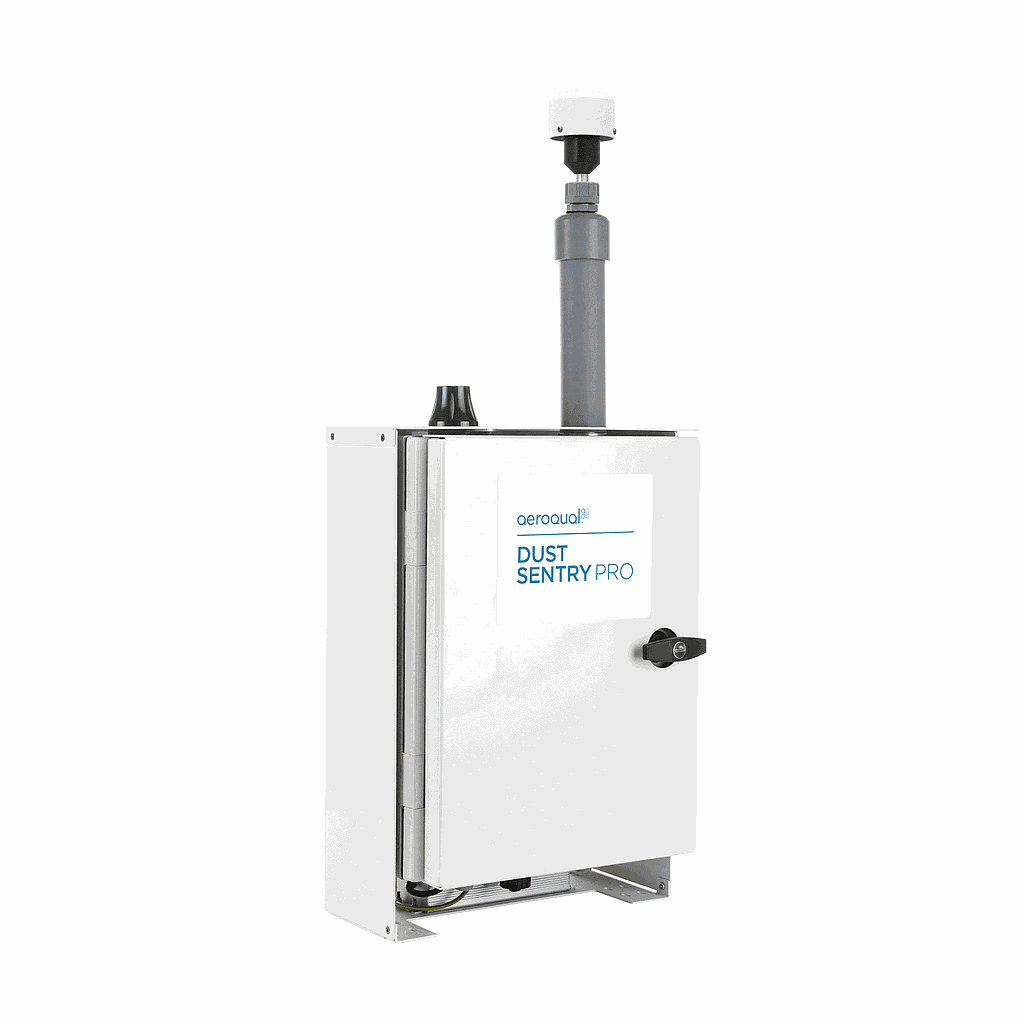

Profiler (Optical Particle Counter)
Sizes: PM1, PM2.5, PM10 or TSP
Range: PM1 200 µg/m3; PM2.5 2000 µg/m3; PM10 5000 µg/m3; TSP 5000 µg/m3
Accuracy: <±(5 μg/m3 + 15% of reading)
Flow Rate: 1.0 LPM
Lower Detectable Limit (2σ): <1 μg/m3
Optional Particulate Counts
Sizes: 0.3, 0.5, 0.7, 1.0, 2.0, 3.0, 5.0, 10 microns
Range: 0-1000000 particles/L
System Specifications
Control System: Embedded fanless PC (Intel Celeron® N3350, 1.1GHz, dual core, 4GB RAM, 32GB SSD hard drive), Ubuntu Linux Operating System
Communications: Standard: WIFI, Ethernet (LAN) Optional modem: Cellular IP 3G HSPA or 4G LTE
Aeroqual Connect instrument operating system.
Aeroqual Cloud instrument monitoring, management and technical support via secure cloud servers, accessed via web browser (IE,
Firefox, Chrome, Safari).
Software:
• Cloud standard features; configuration, calibration, diagnostics, remote technical support.
• Cloud optional features; text (SMS) and email alerts, 3rd party sensor measurements, full data visualisation with charts, wind and
pollution roses, data reporting with auto data export via FTP and API, full instrument event journal capture.
Data logging: 32GB Hard Drive (> 5 years data storage)
Outputs: 2 x Relay (optional), 4 x 4-20mA (optional)
Averaging period: 1 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 hr, 2 hr, 4 hr, 8 hr, 12 hr, 24 hr
Power requirements 100-260 VAC (standard): 30W / 24.7W, Regulated 12 VDC (if required): 33W / 27.2W
Enclosure: Lockable IP65 GRP cabinet with integrated aluminumsolar shield armor
PM Sampling System:
Inlet: Omni-directional 36 cm(14.1 inches) heated inlet; Optional sharp cut cyclones for PM10, PM2.5 or PM1 size selection
Pump: 12 V brushless DC diaphragm
Optics: 670 nm laser, near-forward scattering nephelometer with sheath air protection
Dimensions: 483H x 330W x 187D mm (19 H x 13 W x 7.4 D inches) Includessolar shield armor& mounting brackets
Weight: < 13 kg (28.6 lbs)
Environmental operating range: -10 °C to +50 °C (14 °F to 122 °F)
Mounting 47mm Sample Filter (Optional): Pole, tripod and wall mounting brackets included 47mm filter for particle loading analysis
Factory Integrated & Tested Sensors (Optional):
Gill WindSonic (ultrasonic wind sensor), Vaisala WXT536 (weather transmitter), Met One MSO (weather transmitter), Cirrus MK427 Class 1 (noise sensor), Novalynx Pyranometer(solar radiation), BSWA 308 (sound level meter) Met-One BC-1060 (black carbon monitor), Met-One
E-BAM PLUS (Beta-Attenuation Mass Monitor)
