Output capacity: 500VA
Output Current (220V): 2.3A
Input power: Single phase 200V±15%
Output phase: Single Phase
Output voltage: Auto:(Low gear)1~150.0V,(High gear)150.1~300.0V Hold:(high gear)1~300V
Output frequency: 45~65Hz continuous,adjustable
Frequency stability: 0.1%
Voltage stability: ≤1%
Transient recover time: 20ms
Over current protection: 1.05 rate, 1.1 rated
Protection mode: Short-circuit,overload and power device overheat protection
Display: VFD
Communication: Standard:RS232,Optional:RS485,Remote Control
Dimension: 483*200*380
Weight: 20 kg
Product Detail
Main features
High-frequency pulse-width modulation and IGBT driver,stable sine wave to simulate various state grid conditions,clean power;
Patented impact technlolgy for impact loads,such as resistive,capaciteive,inductive and mixed loads;
High-end clear VFD/LED high-density laminated structure,small size,light;
TS Series with over-voltage protection for internal circuits;
Online adjustable voltage/frequency to support remote PC communication control;
Over-current,over-power,overheating and abnormities protection,sound/light alarm;
Provide 6 shortcut groups to save voltage,frequency and upper/lower voltage deviation settings;
20KW and models provide cable drop compensation function to clear cable voltage drop;
Optional analog control interfaces for voltage/frequency output.
Order information and extended functions

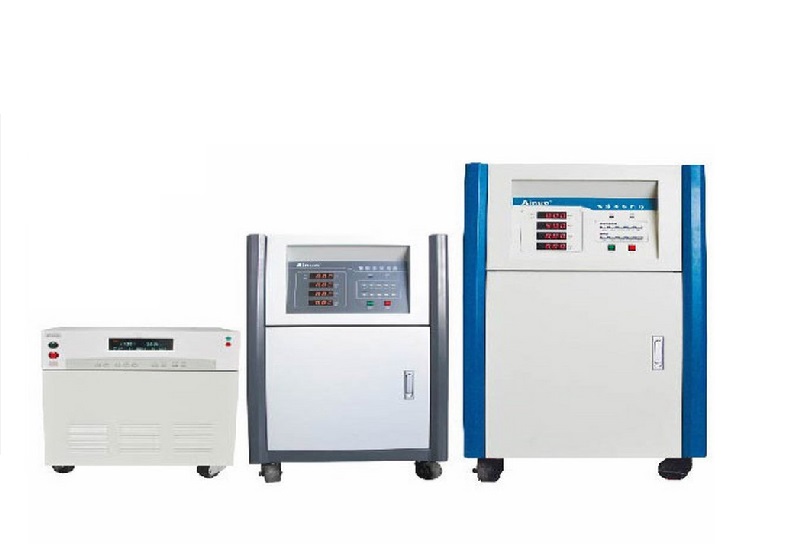

AN97H Series:300V/45-65HZ,capacity 500VA 1kVA,2kvA,3kVA,5kVA,10kVA.
AN97TS series:300V/45-65Hz,capacity 15kVA,20kVA,30kVA,45kVA,60kVA,100kVA.
Output voltage can be up to 400V,600V,need to modify.
|
Type |
AN97H series |
AN97TS series |
|
|
Input power |
Single phase 200V±15% |
3-phase 4-wires/3×220V±15% |
|
|
Output phase |
Single Phase |
||
|
Output voltage |
Auto:(Low gear)1~150.0V,(High gear)150.1~300.0V Hold:(high gear)1~300V |
||
|
Output frequency |
45~65Hz continuous,adjustable |
||
|
Distortion |
2% |
||
|
Frequency stability |
0.1% |
||
|
Power effect |
1% |
||
|
Voltage stability |
≤1% |
||
|
Load effect |
1% |
||
|
Transient recover time |
20ms |
||
|
Over current protection |
1.05 rate<="" span=""> 1.1 rated<="" span=""> |
||
|
Protection mode |
Short-circuit,overload and power device overheat protection |
||
|
Loading capacity |
Can Start a inductive load which capacity is less than 0.5 rated power Capacity of AC power supply,or rectifier load which crest factor is less than 3.0 |
||
|
Memory function |
Save the settings before turn off |
||
|
Shortcut group |
6 groups |
||
|
Preset function |
Output voltage,output frequency and output voltage tolerance can be preset under standby status |
||
|
Adjustment online |
Under running status,output voltage can be adjustable through “+”or”-“button |
||
|
Voltage |
Resolution:0.1V Accuracy: ±(0.8%×reading +0.2%×range) |
||
|
Current |
Resolution:0.001A/0.01A Accuracy: ±(2%×reading+1%×rated output) |
Resolution: 0.01A Accuracy: ±(2%×reading+1%×rated output) |
|
|
Power |
Resolution:0.001KW/0.01KV Accuracy: ±5% |
Resolution: 0.01KV Accuracy: ±5% |
|
|
Display |
VFD |
LED 4-windows |
|
|
Communication |
Standard:RS232,Optional:RS485,Remote Control |
||
|
Model |
AN97000H(F) |
AN97001H(F) |
AN97002H(F) |
AN97003H(F) |
AN97005H |
AN97010H(F) |
AN97010TSH(F) |
|||
|
Output capacity |
500VA |
1kVA |
2kVA |
3kVA |
5KVA |
10 kVA |
10 kVA |
|||
|
Output Current |
110V |
4.6A |
9.2A |
18.2A |
27.4A |
45.6A |
91A |
91A |
||
|
220V |
2.3A |
4.6A |
9.1A |
13.7A |
22.8A |
45.5A |
45.5A |
|||
|
Efficiency |
≥70% |
≥80% |
||||||||
|
Dimension W×H×D(mm) |
483*200*380 |
483*550*400 |
483*750*400 |
483*902*600 |
||||||
|
Weight（kg） |
20kg |
54kg |
62kg |
80 |
195 |
|||||
|
Model |
AN97015TS(F) |
AN97020TS(F) |
AN97030TS(F) </ |
|
