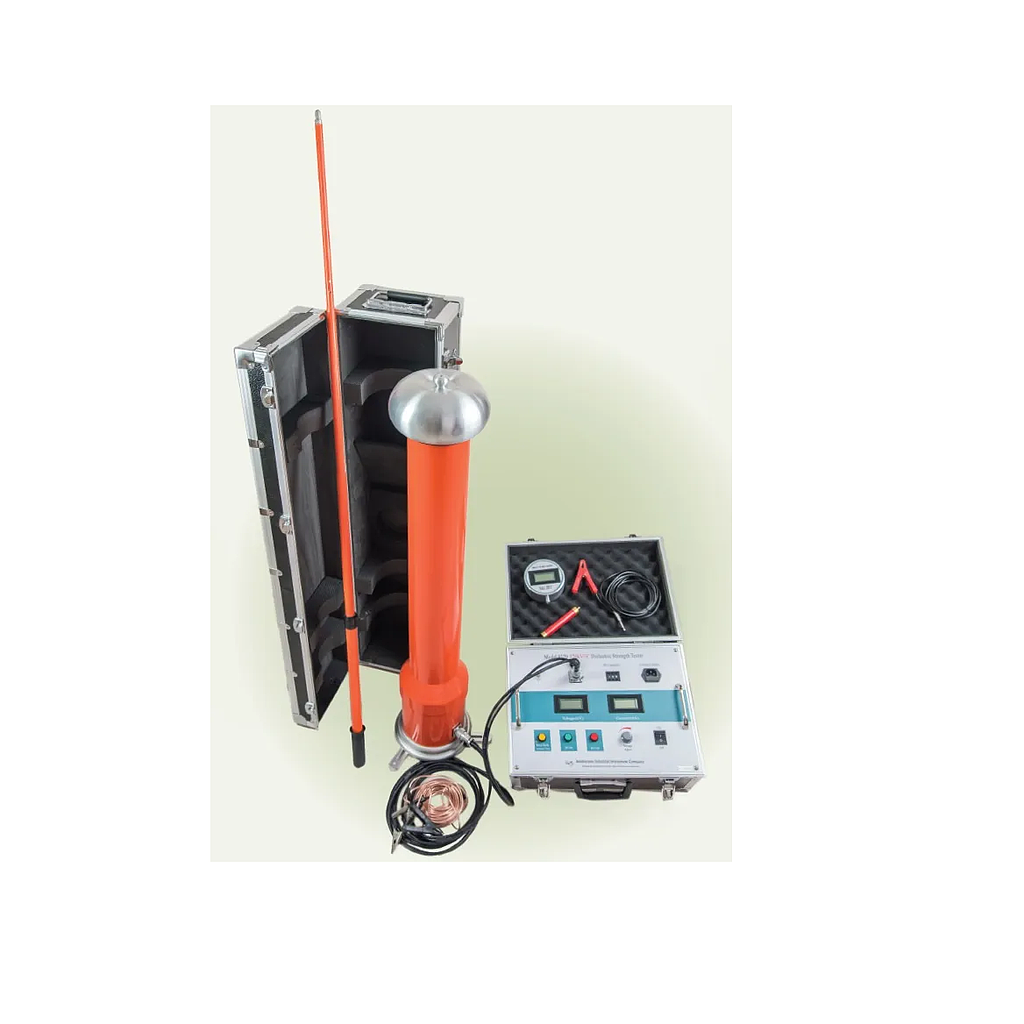

Amblyonix 4120 DC Dielectric Strength Tester (120KVDC)

Rated voltage: 120 kVDC

Rated current: 5 mADC

Rated power: 360 W

Weight: 22 lbs.

Power supply: 120 VAC ±10%, 60 Hz

Dimensions (Control Unit): 16.25″ x 15.5″ x 7.5″

Output voltage accuracy: ±(1.0% reading, ±2 digits)

Output current accuracy: ±(1.0% reading, ±2 digits)

Ripple factor: ≤0.5%

Working mode: Intermittent use, 30 minutes under rated load

Overload Voltage: The no-load voltage can exceed the rated voltage 10% for 10 minutes.

Overload Current: The maximum charge current is 1.25 times of the rated current.

Operating environment: Temperature 14°F to 104°F

Humidity: To ≤85%RH for temperatures under 77°F, non-condensing

Altitude: Under 4,900′
