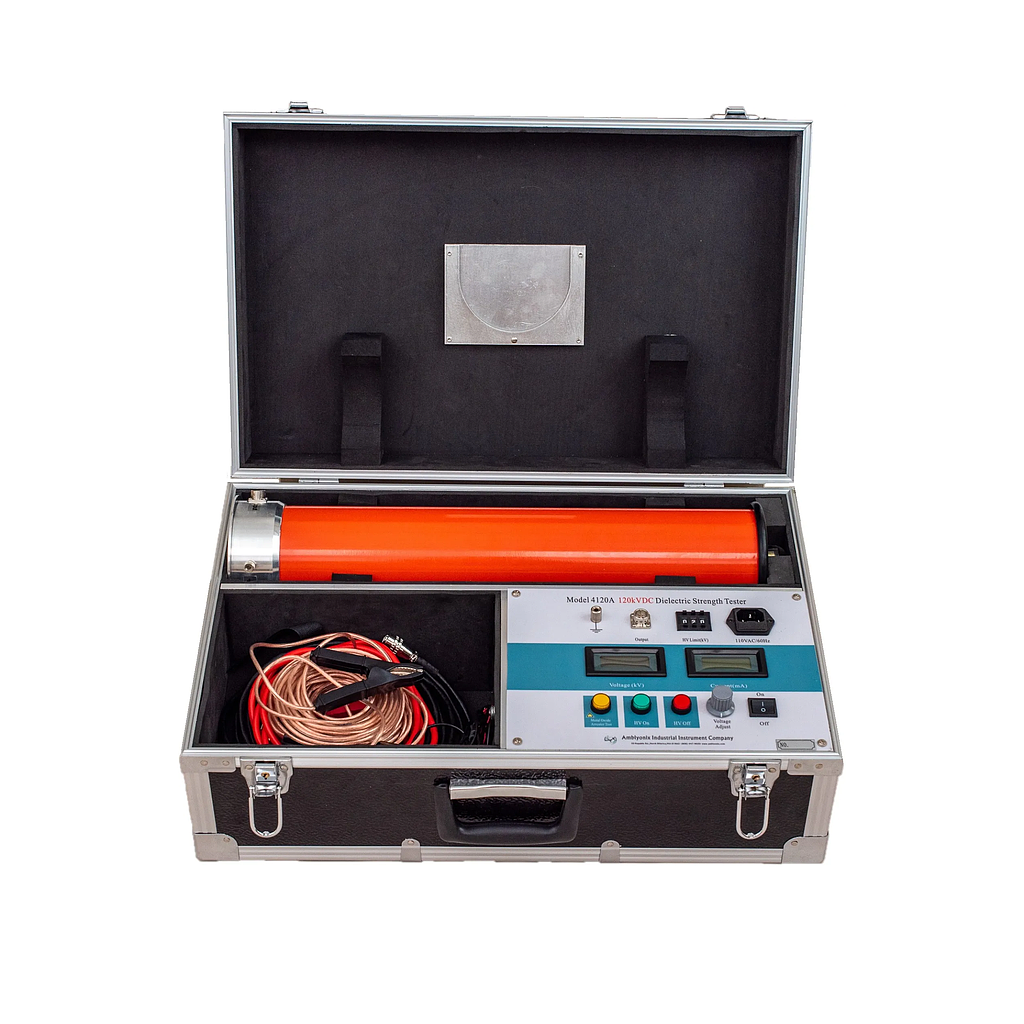

Amblyonix 4120A DC Dielectric Test Set (0~120kVDC)

Output Voltage: 0 to 120kVDC

Rated Output Current: 0-5mADC

Power: 360 watts

Output Voltage Accuracy: ±1% of reading +2 digits

Output Current Accuracy: ±1% of reading +2 digits

Ripple Factor: ≤0.5%

Working Mode: Intermittent use, 30 minutes under fully rated load

Over Voltage: No-load voltage can exceed rated output by 10% for 10 minutes

Over Current: Maximum charge current is 1.25 times the rated output

Operating environment: 148F to 1048F, ≤85% RH under 778F non-condensing

Dimensions: 14.5” x 22.75” x 8.5”

Weight: 43lbs

Datasheet
