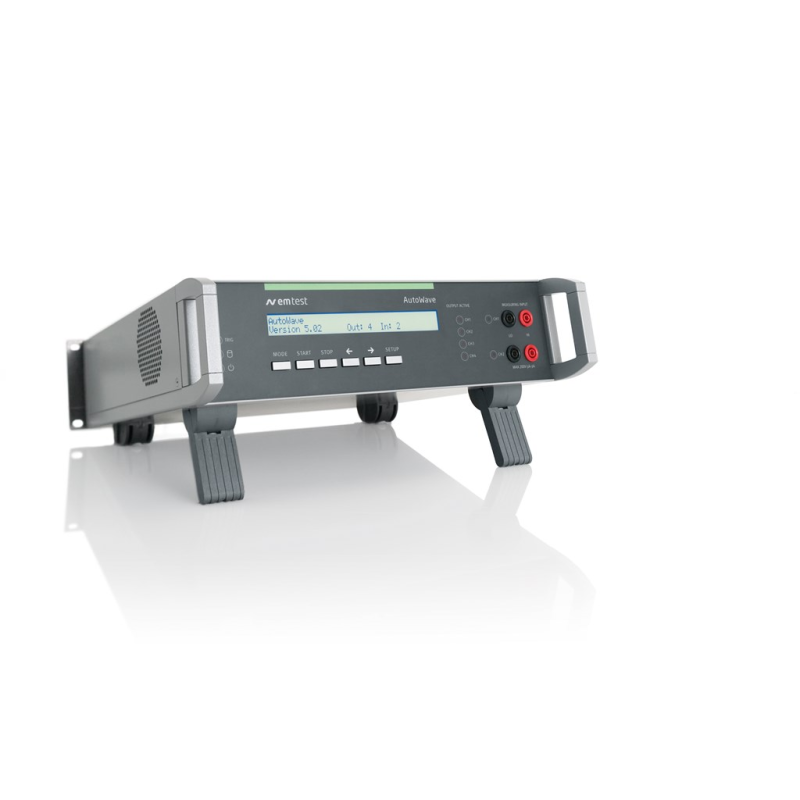

AMETEK CTS AutoWave Signal Generator With Parameter Iteration (2CH; 500 kS/s)

Output channels: 2

Input channels (recorder): -

Output voltage: 10 V, unipolar or bipolar

Accuracy output voltage: DC: ± 0.5 % (+5 mV) / AC: ± 1%

Input voltage (recorder): -

Resolution: 16 bit

Bandwidth / Frequency: DC ... 50 kHz / max. 500 kS/s for 1 channel

Memory: Min 60 GB hard disk, file size max. 1GB

Segment types / wave forms: dc, sine, sine sweep, square, triangular, sawtooth, ramps, exponential, formula, etc.

Number of segments: max. 50 per waveform *

Segment duration: approx. 24 h per segment

Parameter iteration: YES

Point files: YES

Interfaces

Trigger: 2x input, 2x output

DUT monitor: 2x input, configurable

Remote interface: 1x GPIB, 1x ethernet, 1x framebus (EM Test internal bus)

Other interfaces: USB A, only for data transfer by memory stick

Display:LCD, 2 lines, 40 characters

Safety: Outputs short circuit proteded (10 mA max.)

General

Dimension: 380 x 390 x 100 mm

Weight: 6 kg

Power main supply widerange :90 ... 250 VAC; 47 ... 63 Hz

DC Supply (WR model only): -

Fusage / Power: 1 AT / max. 40W

Temperature: + 5 ... + 40 °C

Humidity: 10 ... 90 %, non condensing

Athmospheric pressure: 860 ... 1060 mbar

* The effective number depends on the complexity of the waveform / segment
