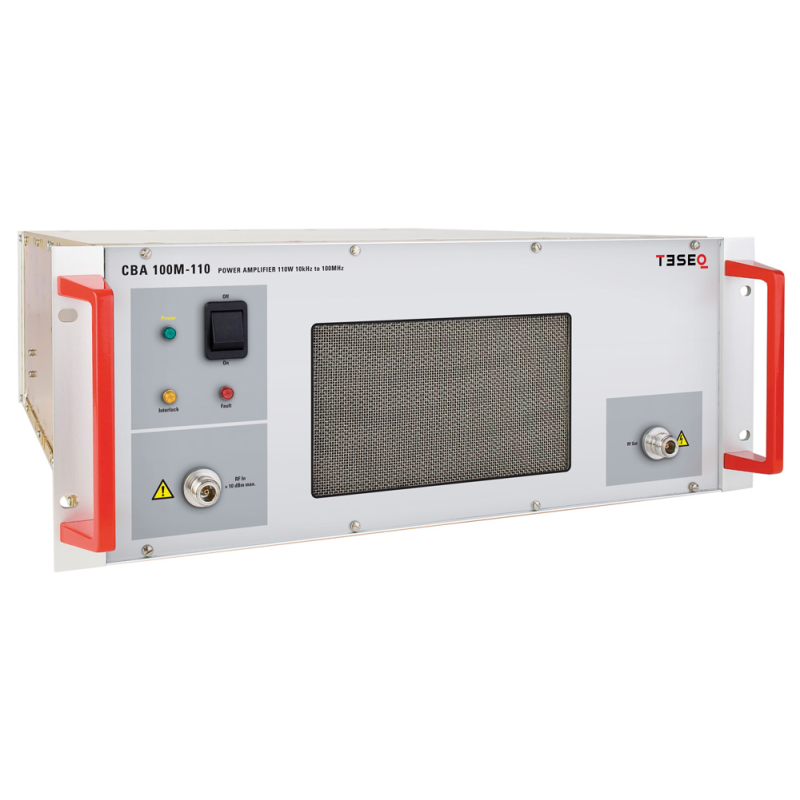

AMETEK CTS CBA100M-110-001 RF Power Amplifier (0.01 - 100 MHz; 130W; 95W)

Front Panel RF Connectors

Frequency Range: 0.01 - 100 MHz

Rated Output Power: 110W (min) - 130W (typ)

Power Output @ 1dB Compression: 90W (min) - 95W (typ)

Input for Rated Output: 1 dBm

Small Signal Gain: 51 dB

Gain Variation (max): ±2.0 dB

Harmonics @ P1dB (min): -20 dBc

Spurious: -70 dBc

Input VSWR: 2:1 (max)

Output VSWR: 2:1 (typ)

Output Impedance: 50 Ohm

3rd Order Intercept Point: 60 dB

Noise Figure: 12 dB

Modulation Formats: AM, FM, PM, ODFM

Maximum Input Power (no damage): 10 dBm

Output VSWR Tolerance: Infinite any phase (no foldback)

Stability: Unconditional

Supply Power (typ): 0.5 KVA

Supply Voltage: 90 to 264 VAC

Dimentions (No Cabinet) (W x H x D): 48.3 x 17.8 x 44 cm (19 x 7.0 x 17.3 in) (4U)

Weight (No Cabinet): 20 Kg (44 lb)

Com. Interface: GPIB, Ethernet & USB

Datasheet
