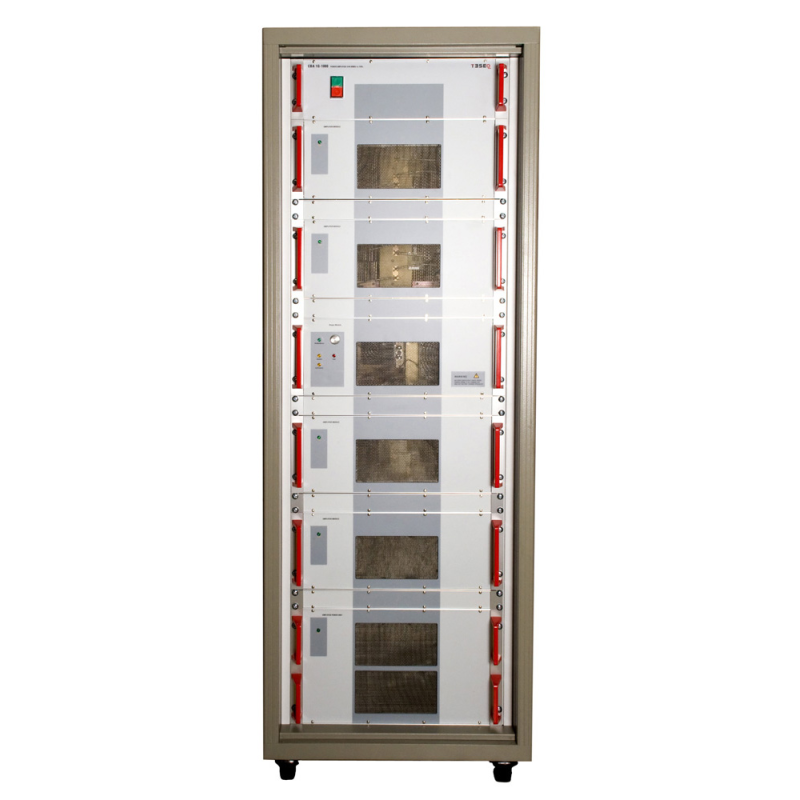

AMETEK CTS CBA100M-1100-004 RF Power Amplifier (0.01 - 100 MHz; 1300W; 1200W; 3 Phase, 5 Wire (3P+N+E), 380 ~ 415 VAC)

Rear Panel RF Connectors, 3 Phase, 5 Wire (3P+N+E), 380 to 415 VAC Line to Line

Frequency Range: 0.01 - 100 MHz

Rated Output Power: 1100W (min) - 1300W (typ)

Power Output @ 1dB Compression: 1000W (min) - 1200W (typ)

Input for Rated Output: 1 dBm

Small Signal Gain: 62 dB

Gain Variation (max): ±3.0 dB

Harmonics @ P1dB (min): -20 dBc

Spurious: -70 dBc

Input VSWR: 2:1 (max)

Output VSWR: 2:1 (typ)

Output Impedance: 50 Ohm

3rd Order Intercept Point: 70 dB

Noise Figure: 12 dB

Modulation Formats: AM, FM, PM, ODFM

Maximum Input Power (no damage): 10 dBm

Output VSWR Tolerance: Infinite any phase

Stability: Unconditional

Supply Power (typ): 6 KVA

Dimentions (No Cabinet) (W x H x D): 51.0 x 151 x 80 cm (20.1 x 59.5 x 31.5 in) (34U)

Weight (No Cabinet): 200 Kg (440 lb)

Com. Interface: GPIB, Ethernet & USB
