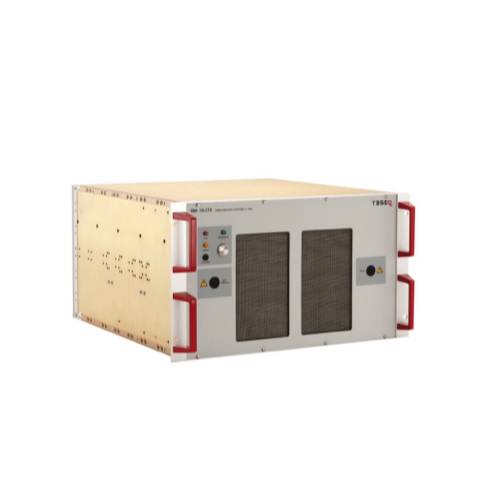

AMETEK CTS CBA250M-800-002 Solid State Amplifier (0.01 - 250 MHz; 900W; 750W; 650W; 500W)

Rear Panel RF Connectors

Frequency Range: 0.01 - 250 MHz

Rated Output Power: 10KHz-80MHz - 800W (min) - 900W (typ)

Rated Output Power: 80-250MHz - 650W (min) - 750W (typ)

Power Output @ 1dB Compression: 10KHz-80MHz - 650W (min)

Power Output @ 1dB Compression: 80-250MHz - 500W (min)

Input for Rated Output: 1 dBm

Small Signal Gain: 63 dB

Gain Variation (max): ±2.0 dB

Harmonics @ P1dB (min): -20 dBc

Spurious: -70 dBc

Input VSWR: 2:1 (max)

Output VSWR: 2:1 (typ)

Output Impedance: 50 Ohm

3rd Order Intercept Point: 68 dB

Noise Figure: 10 dB

Modulation Formats: AM, FM, PM, ODFM

Maximum Input Power (no damage): 10 dBm

Output VSWR Tolerance: Infinite any phase

Stability: Unconditional

Acoustic Noise (measured @ 1 M): 60 dBA

Supply Frequency: 47 to 63 (Hz)

Supply Power (typ): 3 KVA

Supply Voltage: 90 to 264 VAC

Dimentions (With Cabinet) (W x H x D): 48.3 x 26.7 x 55 cm (19 x 10.5 x 21.6 in) (6U)

Weight (With Cabinet): 20 Kg (44 lb)

Com. Interface: GPIB, Ethernet & USB

Datasheet
