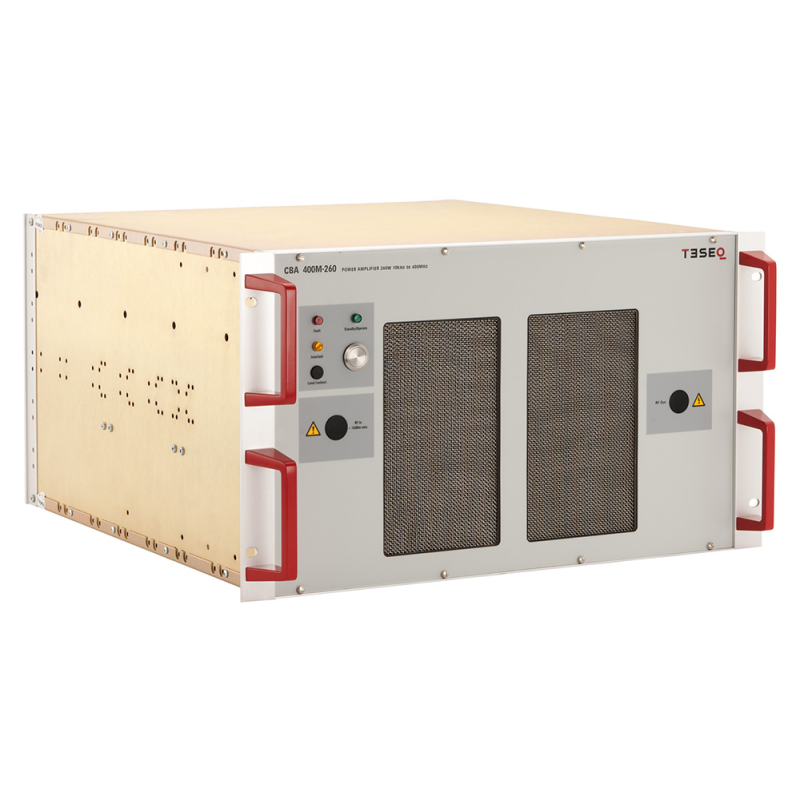

AMETEK CTS CBA400M-260-001 Solid State Amplifier (0.01 - 400 MHz; 280W; 230W)

Front Panel RF Connectors

Frequency Range: 0.01 - 400 MHz

Rated Output Power: 260W (min) - 280W (typ)

Power Output @ 1dB Compression: 210W (min) - 230W (typ)

Input for Rated Output: 1 dBm

Small Signal Gain: 54 dB

Gain Variation (max): ±3.0 dB

Harmonics @ P1dB (min): -20 dBc

Spurious: -70 dBc

Input VSWR: 2:1 (max)

Output VSWR: 2:1 (typ)

Output Impedance: 50 Ohm

3rd Order Intercept Point: 64 dB

Noise Figure: 10 dB

Modulation Formats: AM, FM, PM, ODFM

Maximum Input Power (no damage): 10 dBm

Output VSWR Tolerance: Infinite any phase (no foldback)

Stability: Unconditional

Acoustic Noise (measured @ 1 M): 58 dBA

Supply Frequency: 47 to 63 (Hz)

Supply Power (typ): 1 KVA

Supply Voltage: 90 to 264 VAC

Dimentions (No Cabinet) (W x H x D): 48.3 x 26.7 x 44 cm (19 x 10.5 x 17.3 in) (6U)

Weight (No Cabinet): 20 Kg (44 lb)

Com. Interface: GPIB, Ethernet & USB
