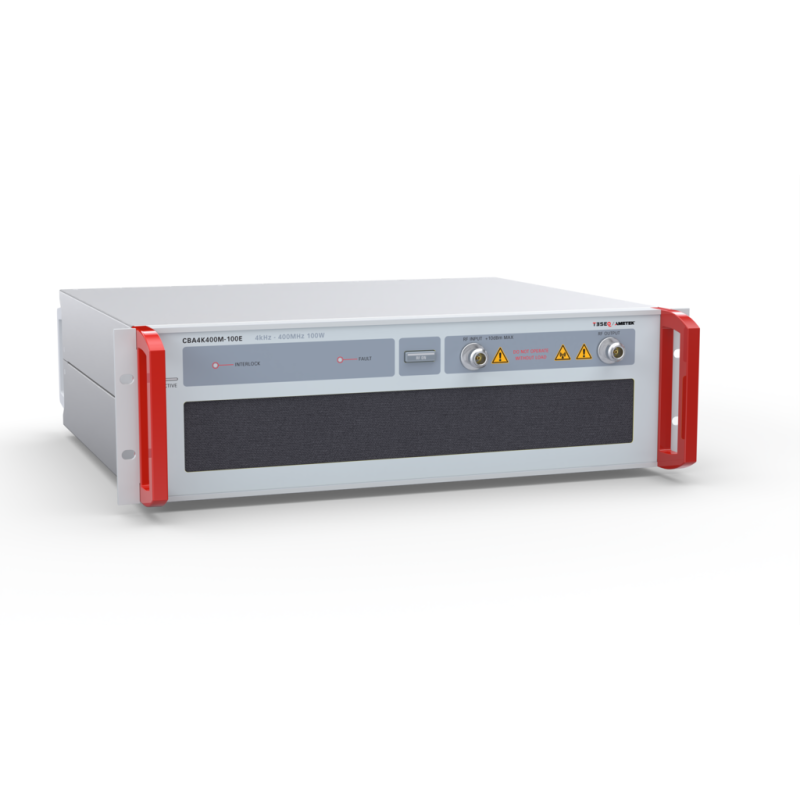

AMETEK CTS CBA4K400M-100E-001 Solid State Amplifier (4 KHz - 400 MHz; 120W; 100W; 89W)

Rack mount Case with Front Panel RF Connectors

Frequency Range: 4 KHz - 400 MHz

Rated Output Power: 110W (min) - 120W (typ)

Power Output @ 1dB Compression: 4KHz to 250MHz 100W (min)

Power Output @ 1dB Compression: 250MHz to 400MHz 89W (min)

Input for Rated Output: 1 dBm

Small Signal Gain: 4kHz to 6kHz 48.5dB - 6kHz to 400MHz 50dB dB

Small Signal Gain Variation: 4kHz to 6kHz ±2dB - 6kHz to 400MHz ±6dB

Harmonics @ P1dB (min): -20 dBc

Spurious: -70 dBc

Input VSWR: 2:1 (max)

Output VSWR: 2:1 (typ)

Output Impedance: 50 Ohm

3rd Order Intercept Point: 60 dB

Noise Figure: 10 dB

Modulation Formats: AM, FM, PM, ODFM

Maximum Input Power (no damage): 10 dBm

Output VSWR Tolerance: Infinite any phase (no foldback)

Stability: Unconditional

Acoustic Noise (measured @ 1 M): 58 dBA

Supply Frequency: 47 to 63 (Hz)

Supply Power (typ): 1 KVA

Supply Voltage: 90 to 264 VAC

Dimentions (No Cabinet) (W x H x D): 48.3 x 13.4 x 36 cm (19 x 13.4 x 14.1 in) (3U)

Weight (No Cabinet): 18 Kg (39 lbs)

Com. Interface: RS232 & Ethernet
