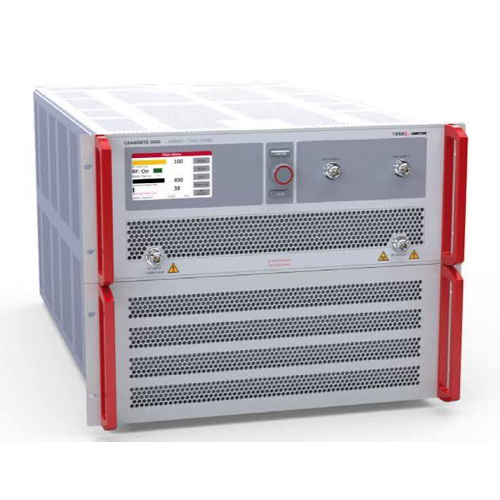

AMETEK CTS CBA80M1G-500E-001 Solid State Amplifier (80 MHz ~ 1 GHz; 575W; 500W)

Front Panel RF Connectors

Frequency Range: 80 MHz to 1 GHz

Rated Output Power: 80-700MHz 525W (min) - 575W (typ)

Rated Output Power: 700-1000MHz 425W (min)

Power Output @ 1dB Compression: 80-700MHz - 450W (min) - 500W (typ)

Power Output @ 1dB Compression: 700-1000MHz - 425W (min)

Input for Rated Output: 0dBm (1mW)

Small Signal Gain: 57 dB

Gain Variation (max) ±: 1.5 dB

Gain Control Adjust When Below P1dB: 20 dB

Harmonics @ P1dB (min): -20 dBc

Spurious (typ): -70 dBc

Input VSWR: 1.5:1 (max)

Output VSWR: 2:1 (typ)

Output Impedance: 50 Ohm

3rd Order Intercept Point: 63 dB

Noise Figure (typ): 8 dBm

Modulation Formats: AM, FM, PM, ODFM

Maximum Input Power (no damage): 13 dBm

Output VSWR Tolerance: Infinite any Phase (No Foldback)

Supply Voltage: 100 to 240 VAC

Supply Power (max): 1.8 KVA

Dimentions (No Cabinet) (W x H x D): (8U) 48.3 x 35.6 x 74.9 cm (19.0 x 14.0 x 29.5 in)

Weight (No Cabinet): 50.8 kg (112 lbs)

Com. Interface: IEEE-488 / RS-232 / RS-232 (fibre optic) / USB 2.0 / Ethernet
