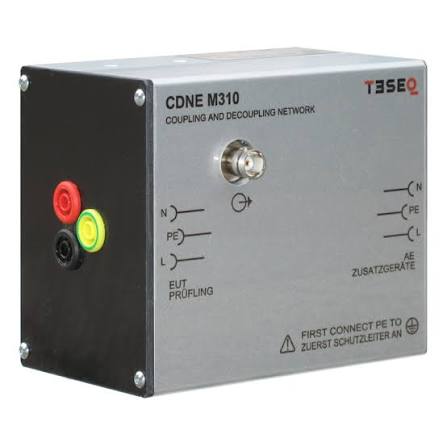

AMETEK CTS CDNE M310 Coupling Decoupling Network for Emission Measurement (30 ~ 300 MHz)

Frequency Range : 30 to 300 MHz

Power Rating (EUT and AE Port)

Maximum AC Voltage (Line to Ground) : 300 V

Maximum AC Voltage (Line to Line) : 520 V

Maximum DC Voltage : 300 V

Maximum Current : 10 A

Test Voltage : 2000 V AC, 2 s

Mains Sockets (EUT and AE Port) : 4 mm, Safety

Common Mode Impedance (EUT Port) : 150 Ω +10/-20 Ω

Phase Angle (EUT Port) : 0° ±25°

Differential Mode Impedance (EUT Port) : 100 Ω ±20 Ω

Coupling Path (EUT/RF Port)

RF Port Connection : BNC, 50 Ω

RF Voltage (Generated from EUT) : <10 V

Transducer Factor / Voltage Division Factor (EUT/RF Port)

Including Internal 10 dB Attenuator : 20 dB ±1.5 dB

Insertion Loss (EUT/AE Port), f <400 Hz : >0.1 dB

Decoupling of Common Mode Disturbance (RF Port/AE) : >30 dB

Datasheet
