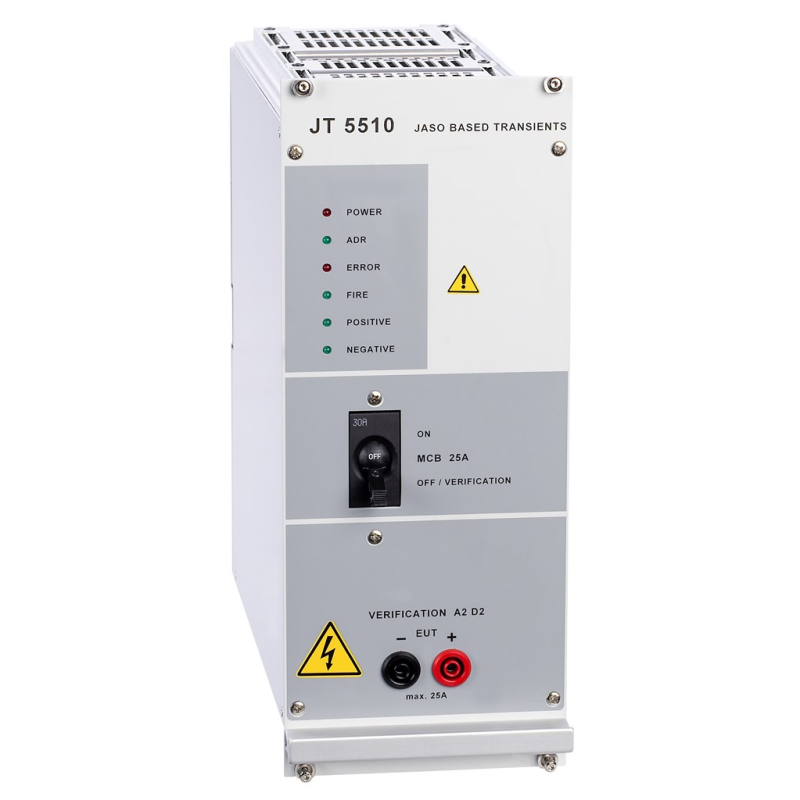

AMETEK CTS JT 5510 Transient Generator (JASO D001-94; Nissan NDS3)

JASO D001-94 (1994)

Positive (Pulse A-2 / D-2): Amp: 20–110V / 170V; tr: <1µs; td: 5.75µs; t: 2.5µs; Ri: 0.4Ω / 0.9Ω; Rep Rate: 1–120s

Negative (Pulse B-1 / B-2 / E): Amp: 20–80V / 260V / 320V; tr: <1µs; td: 138k / 4.6k / 60k µs; t: 60k / 2k / 26k µs; Ri: 8 / 80 / 210 Ω; Rep Rate: 6s / 6s / 30s (Min) to 120s (Max)

Nissan NDS3 (1997)

Pulse B-1 (Positive): Amp: 20–80V; tr: <1µs; td: 46k µs; Ri: 3Ω; Rep Rate: 3–120s

Pulse B-2 (Negative): Amp: 20–300V; tr: <1µs; td: 7.6k µs; Ri: 3Ω; Rep Rate: 3–120s
