Unit System: Metric system or British system (optional)
Display: LCD with backlight
Range: Pulse-Echo mode: (0.65-600)mm (in Steel) Echo-Echo mode: (3~60)mm
Resolution: 0.1mm / 0.01mm / 0.001inch
Accuracy: ±(0.5%n + 0.05mm), depends on materials and conditions
Measurement Period: 4 times per second for single point mode and 10 times per second for scan mode
Sound Velocity: 1000m/s~9999 m/s
Unit System: Memory for up to 20 files(99 values for each file)of stored values
Working Mode: There are two working modes of thickness measurement: single mode and scan mode
Operating Conditions: Temperature:0~40ºC Humidity:<85%RH
Power Supply: 4x1.5V AAA(UM-4)Battery
Dimensions: 142mmx72mmx34mm
Weight: 175g(Not Including Batteries)
Standard accessories:

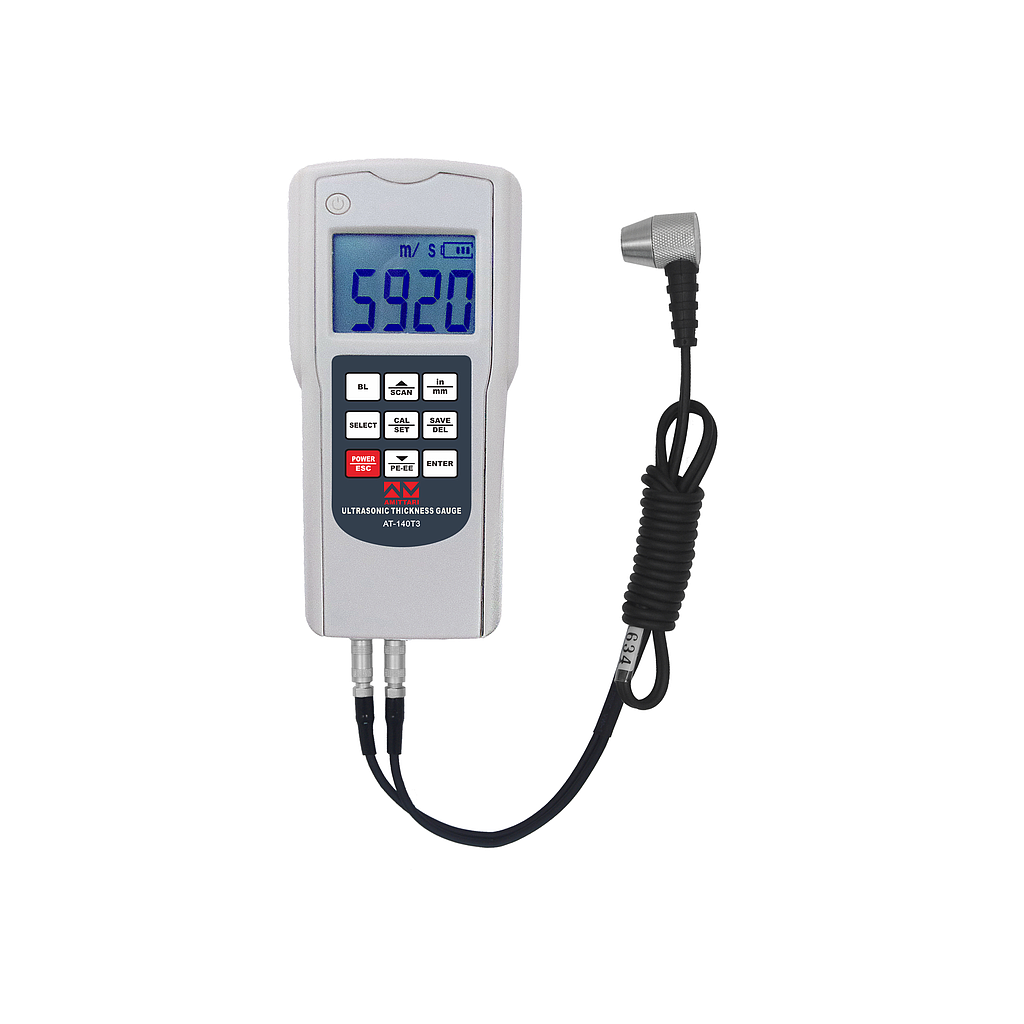

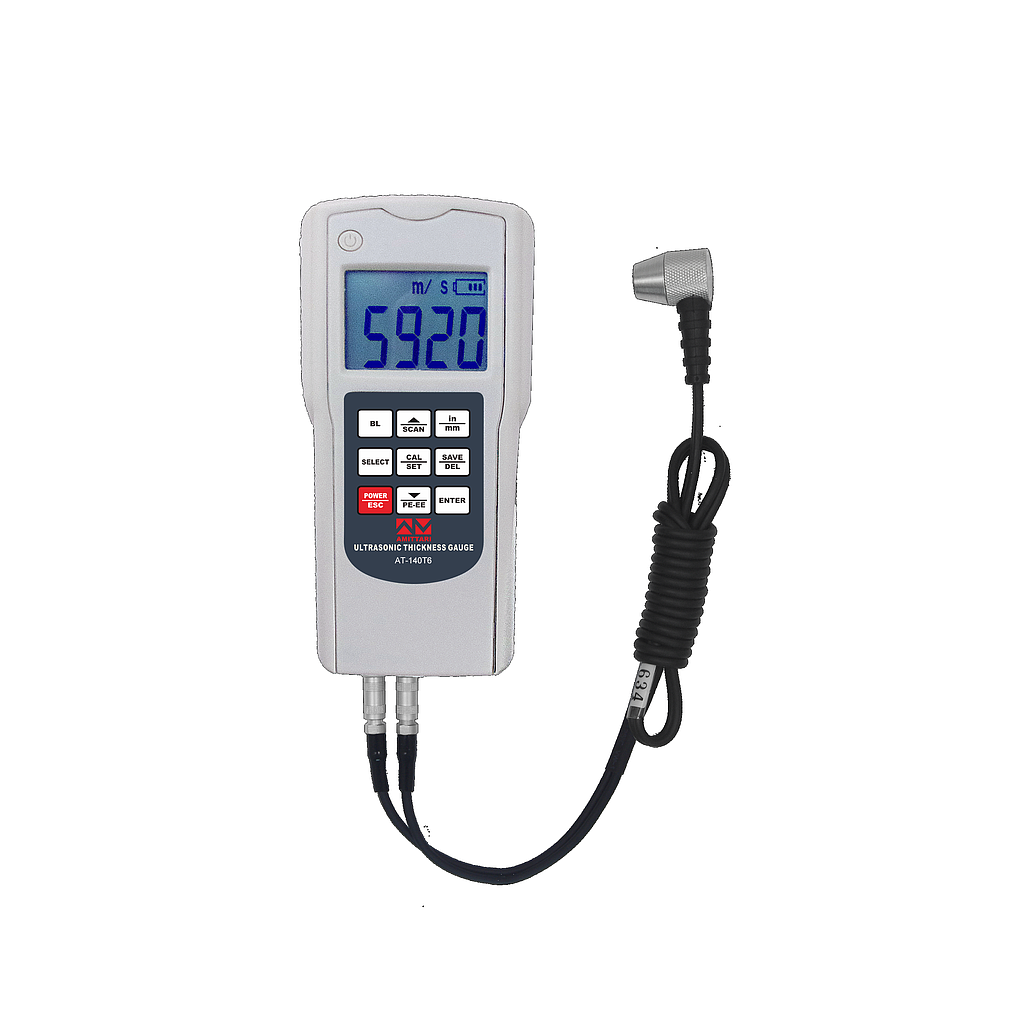

Main Unit
Standard Probe
Coupling Agent
Carrying Case(B04)
Operation Manual
Optional accessories:
RS-232C Data Cable with Software
Bluetooth adapter and software
Other Special-purpose Probe
