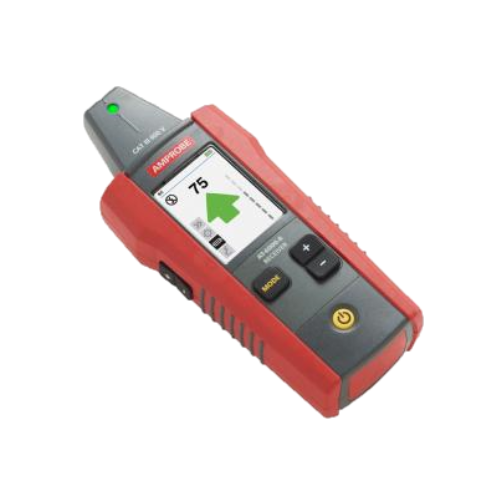

Amprobe AT-6000-R Advanced Wire Tracer Kit (Receiver)

Measurement Category: CAT III 600 V

Operating voltage: 0 to 600 V AC/DC

Operating frequency: Energized: 6.25 kHz

                                   De-Energized: 32.768 kHz

Hazardous voltage detection: See NCV detection

Signal indications: Numeric, bar graph display and audible beep

Response time: Tip Sensor (energized/de-energized): 500 MS

                           NCV: 500 MS

                           Battery voltage monitoring: 5 sec

Current output of signal (typical): N/A

Signal voltage output (nominal): N/A

Range detection (open air):

                           Tip sensor (Energized):

                           Max distance via air: up to 20 ft (6.1 m)

                           Pinpointing: approx. 1.97 in (5 cm)

                           Tip sensor (De-energized):

                           Max distance via air: up to 14.7 ft (4.5 m)

                           Pinpointing: approx. 1.97 in (5 cm)

                           NCV detection (40 to 400 Hz):

                           Max. sensitivity: 90 V up to 6.56 ft (2 m)

                           Min. sensitivity: 600 V up to 0.39 in (1 cm)
