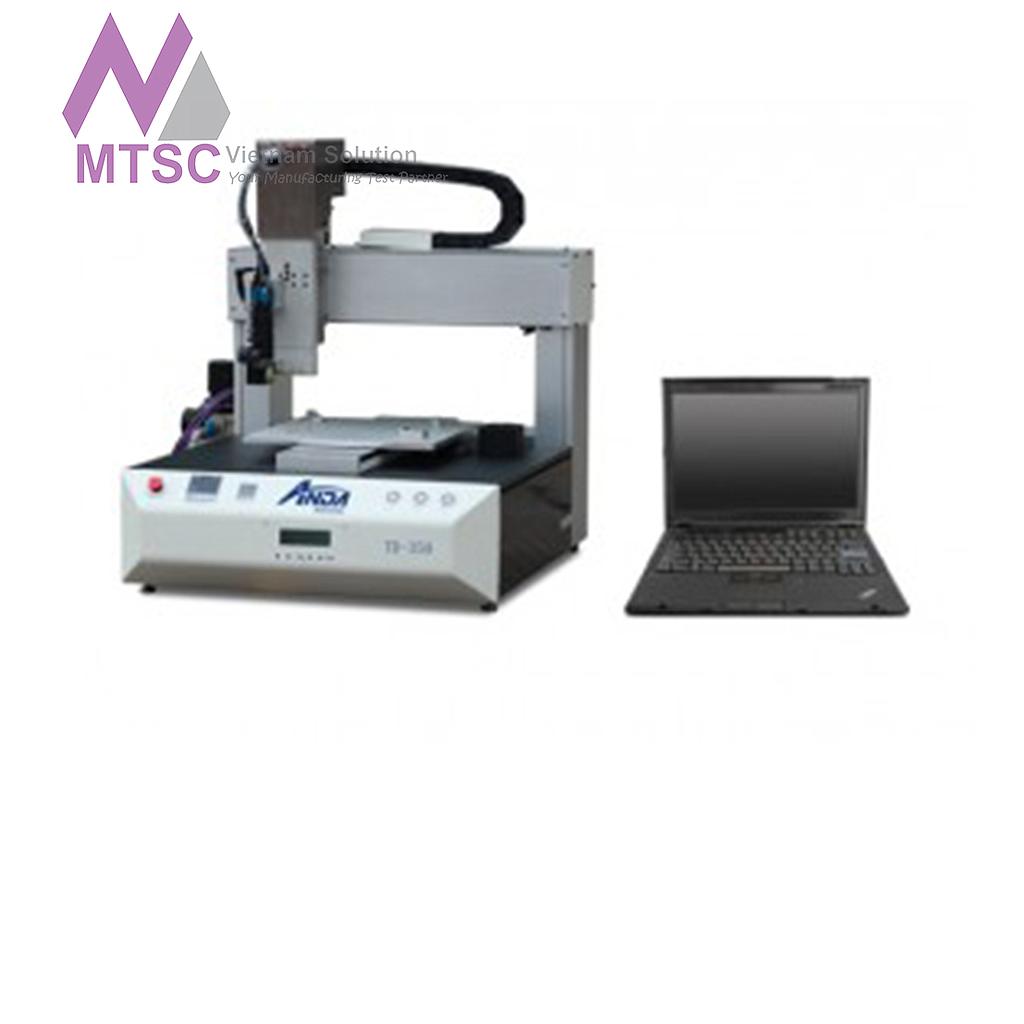

Anda Selective Conformal Coating iJet TD-250
Manufacturer: Anda Model: TD-250 Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
iJet-Table Dispenser Model 250: SMT and PCB Packaging, Underfill, Semiconductor Packaging, LED Packaging, Electromechanical Assembly, Flat Panel Assembly, etc.
TD-250 SPECIFICATIONS
Dimensions LxWxH (mm): 600 x 620 x 690mm
Control Method: Laptop Computer + Motion Controller
CCD Vision Camera: Automatic Calibration & Offset Correction
Motion/Drive System: Servo Motor, Ball Screw, Linear Slides
Max Speed: 600mm/second
Precision & Repeatability: 0.02mm
Dispensing Range: X=250mm Y=250mm Z=100mm
Number of Dispensing Valves: 1 with optional second Valve
Valve Heating (Viscosity Control): ~80°C ± 3°C
Adhesive Capacity: 10CC, 30CC, 50CC (larger capacity options)
Coating Detection: Automatic
Valve Cleaning System:Vacuum
Programming Mode: Inline Visual Programming
Incoming Voltage:
- 220-240VAC Single Phase, 50/60Hz (3 wire);
- 220-240VAC Single Phase, 50/60Hz (3 wire);
- 208VAC Split Phase, 60Hz (4 wire);
Air Pressure: 5kg/m²
Power Consumption: 1.8kW
Weight: 75kg
Options
Valves: PS-8500, E-01, JET-16, TDS-10, TDS-25, TDS-40, LG-02
PCB Heater: Zone Heater, Ambient ~ 120°C ± 3°C
Laser Height Measurement: Automatic Laser Height Detection & Z Axis height Calibration
