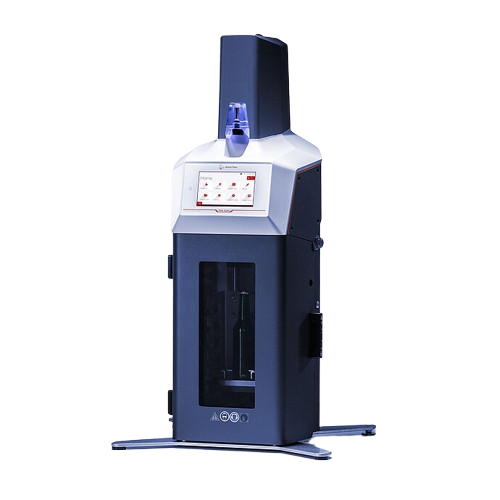

Anton Paar TPO 5000 Total Package Oxygen Meter (0 ppm~2 ppm/ 0 ppm~45 ppm; 0 hPa~45 hPa/ 0 hPa~1,000 hPa)

Measuring range dissolved oxygen

- Trace sensor: 0 ppm to 2 ppm

- Wide range sensor: 0 ppm to 45 ppm

Measuring range headspace oxygen

- Trace sensor: 0 hPa to 45 hPa

- Wide range sensor: 0 hPa to 1,000 hPa

Sample throughput: Up to 15 samples per hour

Required supplies:

Required oxygen-free gases: N2 or CO2 class 5 (if TPO 5000 is used without CO2 measurement)

Additional gases: Compressed air, oil-free¹

Cleaning: Deionized process water, chlorine-free

Communication interfaces

- 3x USB

- Ethernet

- CAN (for Anton Paar devices

only)

- RS232

Power supply: AC 85 V to 264 V, 45 Hz to 66 Hz, or DC 88 V to 370 V

Display: 7" LCD panel with projective capacitive touchscreen

Data storage: Up to 5,000 measurement data sets

Dimensions (L x W x H): 515 mm x 590 mm x 1,120 mm (20.3 in x 23.3 in x 44.1 in)

Weight 70 kg (154 lbs)

¹ Oxygen-free gas can be used if no compressed air connection is available.
