Specification
Code: 462W100
Fork Coupling (T): T5
Flow rate: 0.3 ÷ 100 l/min
MAX Pressure: 20 bar
INTRODUCTION

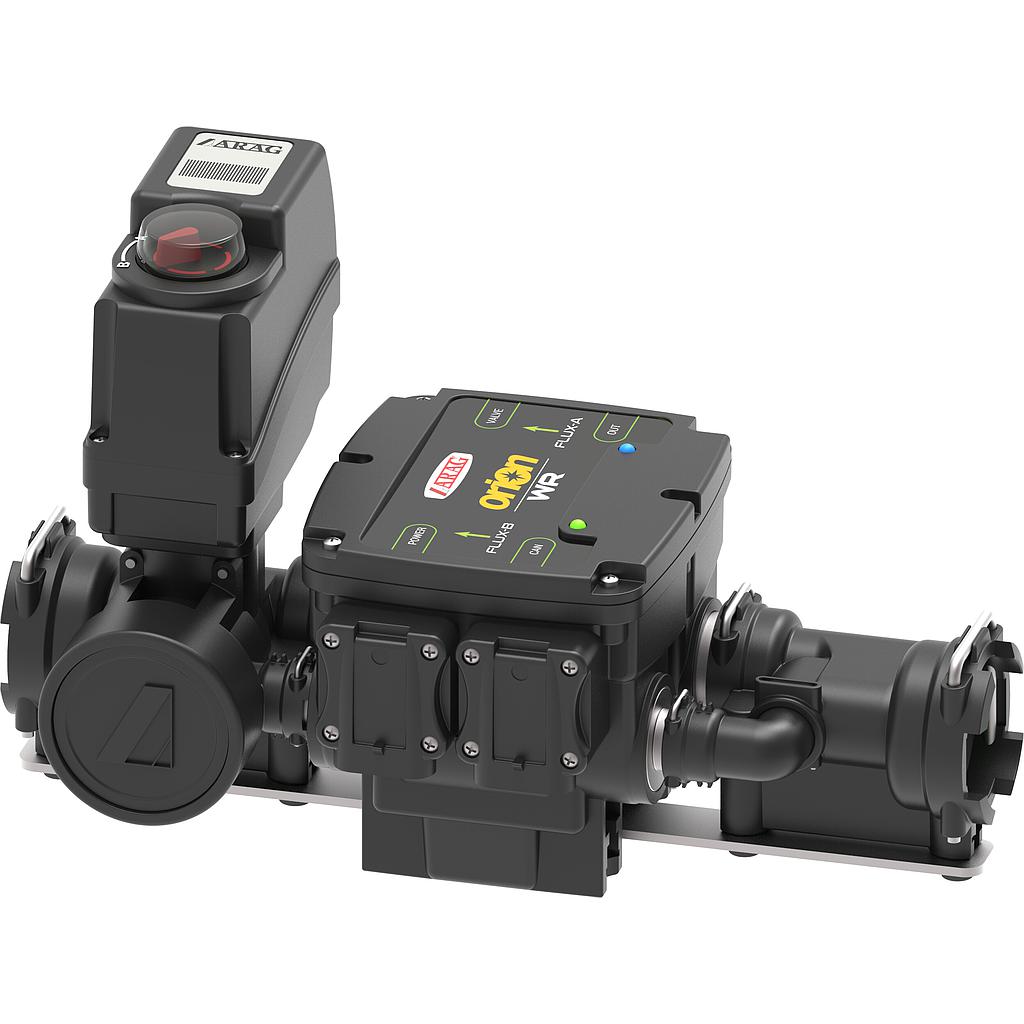

ORION Wide Range flowmeter
Orion WR is a system that allows measuring a very wide flowrate range, thus solving the problem of spraying machines that require the measurement of the flowrate of the entire boom as that of a single nozzle.
The system consists of a diverter valve and two electromagnetic flowmeters with contiguous measuring ranges (e.g. 0.5-10 l/min / 0.13-2.6 GPM and 10-200 l/min / 2.6-53 GPM).
Integrated electronics detect the flowrate and activate the valve to select the appropriate channel for the flowrate to be measured.
TECHNICAL FEATURES
2 pulse outputs with frequency proportional to the flowrate
LED for status indication of each single channel
12 and 24 VDC models
Clamping bracket included
Possibility of connecting two Orion WR in parallel to further extend the measuring range
