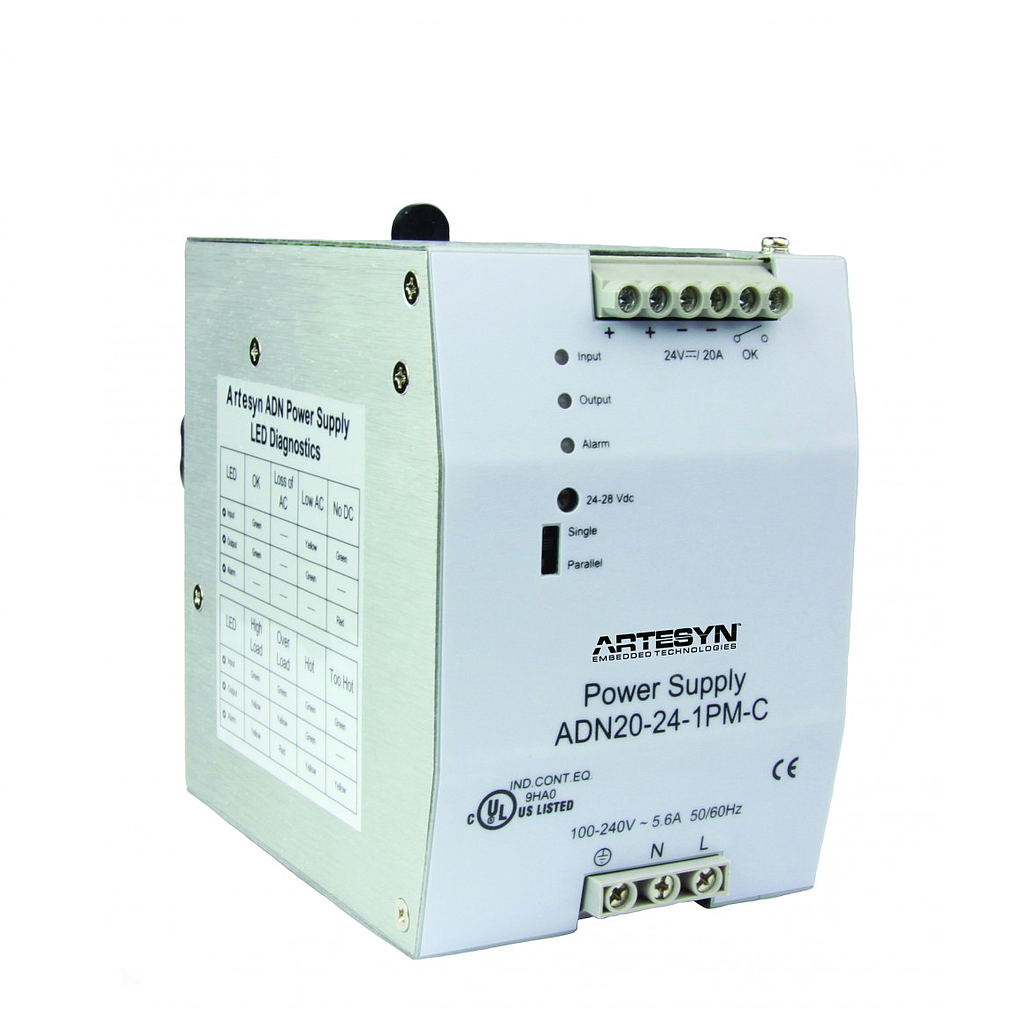

Input
AC input range: Nominal: 100-240 Vac/115-230 Vac/85-264 Vac
DC input range: 90-375 Vdc
Frequency: 47-67 Hz, 400 Hz
Efficiency: > 90%
Inrush current (typical): < 15A or < 60A depending on model
PFC: Active, better than 0.92
Output
Nominal voltage:
24 Vdc (22.5-28.5 Vdc Adj): ADN5-24-1PM-C & ADN10-24-1PM-C
24 Vdc (24-28 Vdc Adj): ADN20-24-1PM-C & ADN40-24-1PM-C
Initial voltage setting: 24.5 V ± 1%
Hold-up time: > 20 ms at full load (100 Vac Input @ Tamb = +25 °C)
Voltage regulation: < ± 2% (combination line, load, time and temperature related changes)
Ripple:
< 50 mVpp: ADN5-24-1PM-C & ADN10-24-1PM-C
< 100 mVpp: ADN20-24-1PM-C & ADN40-24-1PM-C
Back EMF immunity: < 35 Vdc
Power Boost™ 1.5 x Nominal current for 2 or 4 seconds depending on model
Short circuit current 1.5 x Nominal current at near zero volts at short circuit condition
Parallel operation: Switch selectable single unit or parallel unit operation. Units will not be damaged by parallel operation (regardless of switch position setting)
Ouput noise suppression: Radiated EMI values below EN61000-6-2
Overvoltage protection: > 30.5 Vdc but < 33 Vdc, auto recovery
Line and load regulation: < 0.5%
Time and temperature drift: < 1%
Environmental Specifications
Storage temperature: -40°C to + 85°C; All models
Operating temperature:
From -25°C to 70°C. Derate starting at 60 °C; All models
Up to 50% load permissable with horizontal or on top mounting orientation
Ordering Information
Power: 480 W
Input Voltage : 85-264 Vac; 90-375 Vdc
Weight: 2.6 lbs (1200 g)
Current: 20 A @ 24 Vdc
Case Type: Metal with mounting clip
MTBF Demonstrated at 40 °C: 450.000 hours
