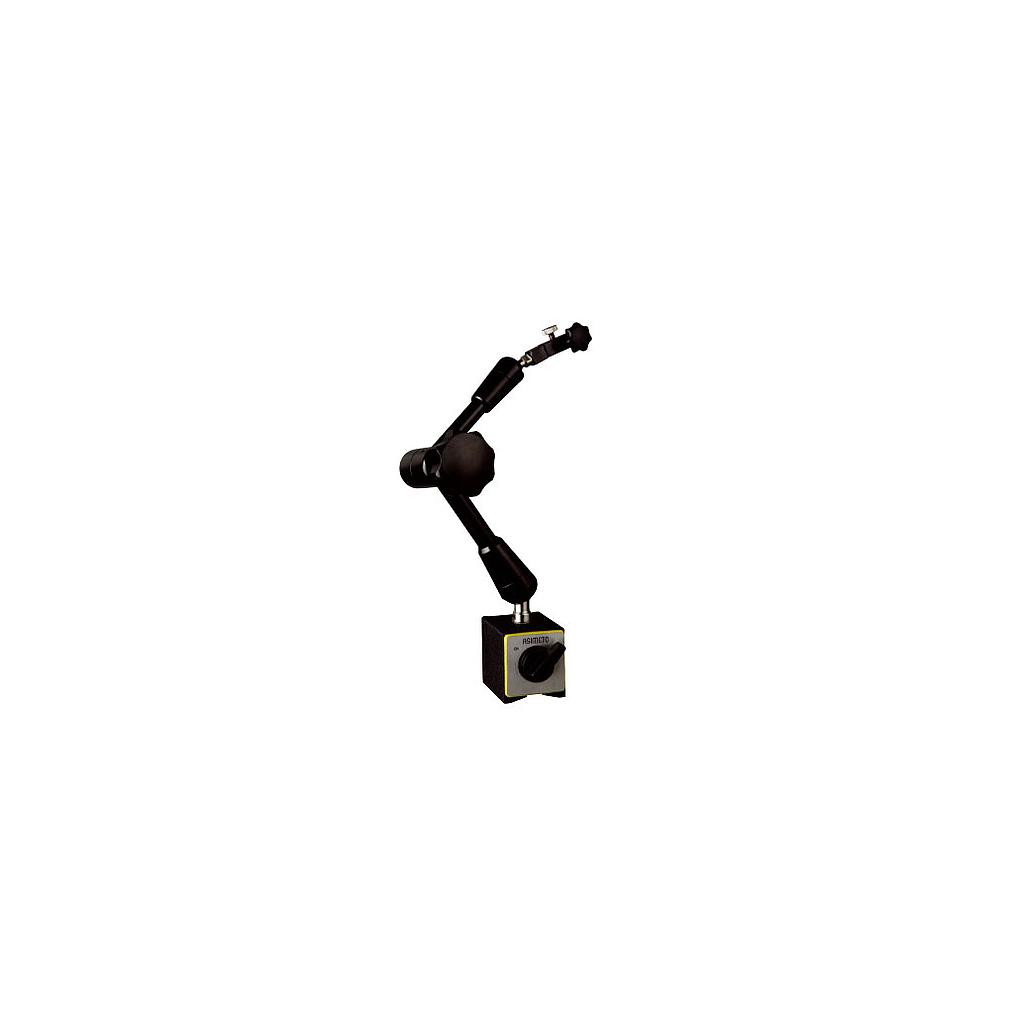

Slot: 6.5mm
Arm (L): 337mm
Arm (L1): 120mm
Arm (L2): 116mm
Arm (L3): 76mm
Dia. of Hole: Φ3/8" Φ8mm
Magnetic Power: 80 kgf
Base (L x W x H): 60x50x55mm
Accepts test indicators with dovetail clamping mechanism.
Dial gauges can be held by the 3/8" or 8mm diameter stem or by the lug backing plate.
The rotary knob switches natural magnet On or Off.
The precision surfaces and the bottom V are securely fastened to the ferrous workpiece or machine table when the rotary knob is in the on position.
