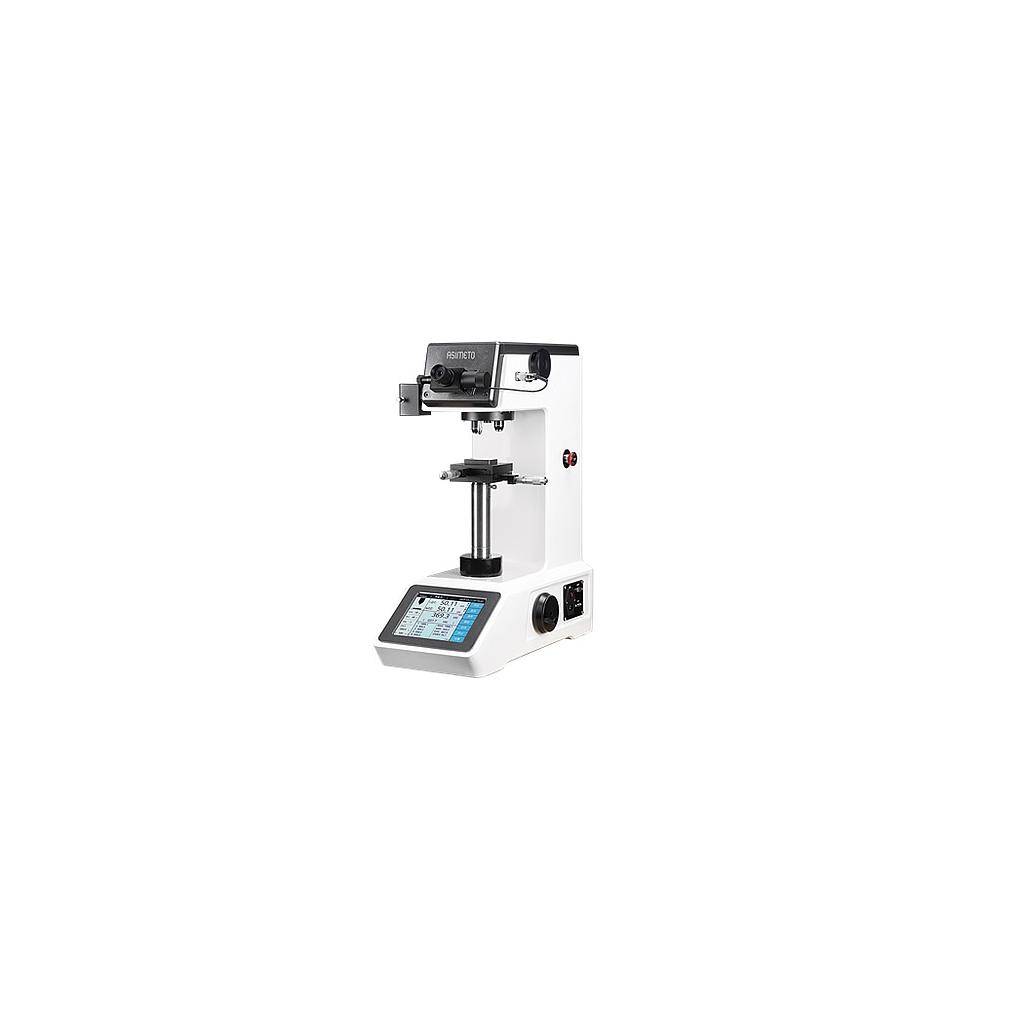

Range: 5 - 3000HV
Weight: 105kg
Eyepiece: 10X
Dimension: 580 x 260 x 730mm
Objective: 10X, 20X
Test Force: 2.942, 4.904, 9.807, 19.61, 24.52, 29.42, 49.04, 98.07 N 0.3, 0.5, 1, 2, 2.5, 3, 5, 10 kgf
Test Height: 210mm
Power Supply: AC220V, 50Hz / 60 Hz
Throat Depth: 130mm
Load Dwell Time: 5 - 99 seconds
Min. Testing Unit: 0.125μm
Total Magnification: 100X, 200X
5.6" LCD touch screen with 4 short cut buttons.
Auto-Turret; frictionless spindle with high precision testing force.
Auto hardness conversion to others scales, no need to check table and improve working efficiency.
Dynamic display of pressure head during loading and unloading process, real-time test status.
Test force, indentation lenght, holding time, measurement frequency, etc. display on the screen.
Concave and convex surfaces hardness value auto correction.
Test result synchronized to database and export.
Support USB and RS232 interface.
Precision conforms to standard ISO 6507 and ASTM E92.
