Camera: 1.3M Pixel Digital Camera
Weight: 190kg

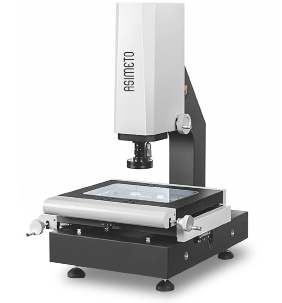

Model No.: MVS3020
Zoom lens**: 6.5X High Resolution Detented Zoom Lens | Magnification: 0.7X ~ 4.5X Video Magnification: 20X ~ 200X
Field of View: 8.1 ~ 1.3mm (Depends on Camera and Lens)
Repeatability: ±2μm
Z-Axis Travel: 200mm
Base and Pillar: High Accuracy Marble
X/Y-Axis Travel: 300 x 200mm
Dimension (WxDxH): 600 x 740 x 890mm
X/Y-Axis Accuracy*: ≤2.5 + L/200(μm)
Working Environment: Temperature: 20°C±2°C Change range < 2°C/hr | Humidity: 30% ~ 80% | Vibration <0.002g, <15Hz
X/Y/Z-Axis Scale Resolution: .0005mm
Illumination System (Software Adjustment): Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination | Contour: LED Parallel Illumination | LED Laser Navigation Lights
High precision marble base and mechanical structure provide great stability and rigidity.
6.5X Detented zoom lens, magnification 0.7x - 4.5x.
1.3M pixel digital camera.
Programmable 3-ring 8-division LED surface illumination.
Contour parallel LED illumination.
0.5μm linear scale.
Laser indicator navigator.
RationalVue software.
