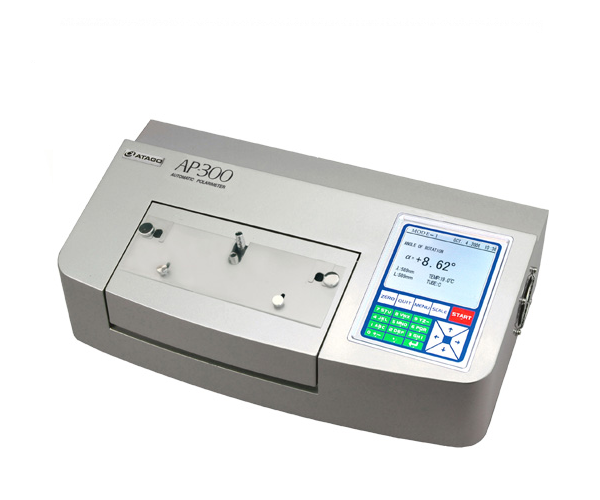

| Model | AP-300 | Cat.No. | 5291 |
| Measurement Scales | Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation) | ||
| Measurement Readings | Angle of Rotation, International Sugar Scale (without temperature compensation), International Sugar Scale (with Automatic Temperature Compensation ), Specific Optical Rotation, Concentration, and Purity | ||
| Measurement Range | Angle of Rotation -89.99 to +89.99° International Sugar Scale -130.00 to +130.00°Z | Minimum Indication | Angle of Rotation 0.01° International Sugar Scale 0.01°Z |
| Measurement Accuracy | Angle of Rotation Displayed value ±0.01° (- 35.00 to + 35.00° ) Relative precision ±0.2% (- 35.01° to - 89.99° , + 35.01° to + 89.99° ) International Sugar Scale Displayed value ±0.03°Z (- 101.00 to + 101.00° ) Relative precision ±0.2% (- 130.00 to - 101.01°Z , + 101.01 to + 130.00°Z ) ( Checked by reading a standard Quartz Plate ) | ||
| Temperature correction range for International Sugar Scale | 18.0 to 30.0° C | Manual Calibration | Enables manual calibration by measuring a standard Quartz Plate |
| Measurement Wavelength | 589nm(D-line) | Display Panel | Color LCD with backlight |
| Power Supply | AC100V to 240V 50/60Hz | ||
| Power Consumption | 65VA | Output Terminals | • Digital Printer DP-63or DP-AD( Optional ) • RS-232C |
| Dimensions & Weight | 48.5×28.5×17.5cm, 13.9kg (Main Unit only) | Accessories | 100mm (5ml), 200mm (10ml) Observation tube (1each) |
| Optional | • Special Packages Type A Temperature Controlled: Cat.No.5296 • Special Packages Type B Temperature Compensation: Cat.No.5297 • Digital Printer DP-63: Cat.No.3118 • Digital printer DP-AD: Cat.No.3123 • Observation tube 100mm long OT-100 (A) : RE-72001 • Observation tube 200mm long OT-200 (A) : RE-72002 • Jacketed flow tube 100mm : RE-72034 • Jacketed flow tube 200mm : RE-72035 • Jacketed flow tube 50mm : RE-72036 • Jacketed flow tube with funnel 100mm : RE-72033 • Jacketed flow tube with funnel 200mm : RE-72032 • Quartz control plate 34°: RE-72045 • Quartz control plate 17°: RE-72044 • Quartz control plate 8°: RE-72043 * Calibration Certificate : Contact an ATAGO representative for details. | ||
| Parts | • Deck glass : RE-6712 • Rubber packing for observation tube : RE-6713 • Ring nut for observation tube : RE-6714 • Light source unit : RE-74806 • Printer paper (regular) for DP-63: RE-8412 • Printer paper (long-term storage) for DP-63: RE-8414 • Printer paperfor DP-AD: RE-89403 • Ribbon cassette for DP-AD: RE-89402 | ||
