Pressure range: 1~160 MPa
Piston: 0.5kg
Mass: 79.5kg
Accuracy (%rd): 0.005
Piston material: Tungsten carbide
Cylinder material: Tungsten carbide
Mass material: 304 non-magnetic stainless steel Hydraulic base material: Aluminium alloy
Effective area: 0.5 cm2
Transforming and lubrication medium: Mineral Oil (<25MPa); Sebacate (≥25MPa)
Reservoir volume: 400ml
Connector: Metric (NPT or BSP is option)
Base size: 310 mm (H) x 480 mm (L) x 680 mm (D) Base weight: 30kg
Power: AC220V, 50Hz
SCOPE OF DELIVERY
BL511 Hydraulic deadweight tester base
Piston cylinder unit
Mass carrier
304 non-magnetic stainless steel mass set
Adapter kits (NPT, BSP)
Datasheet

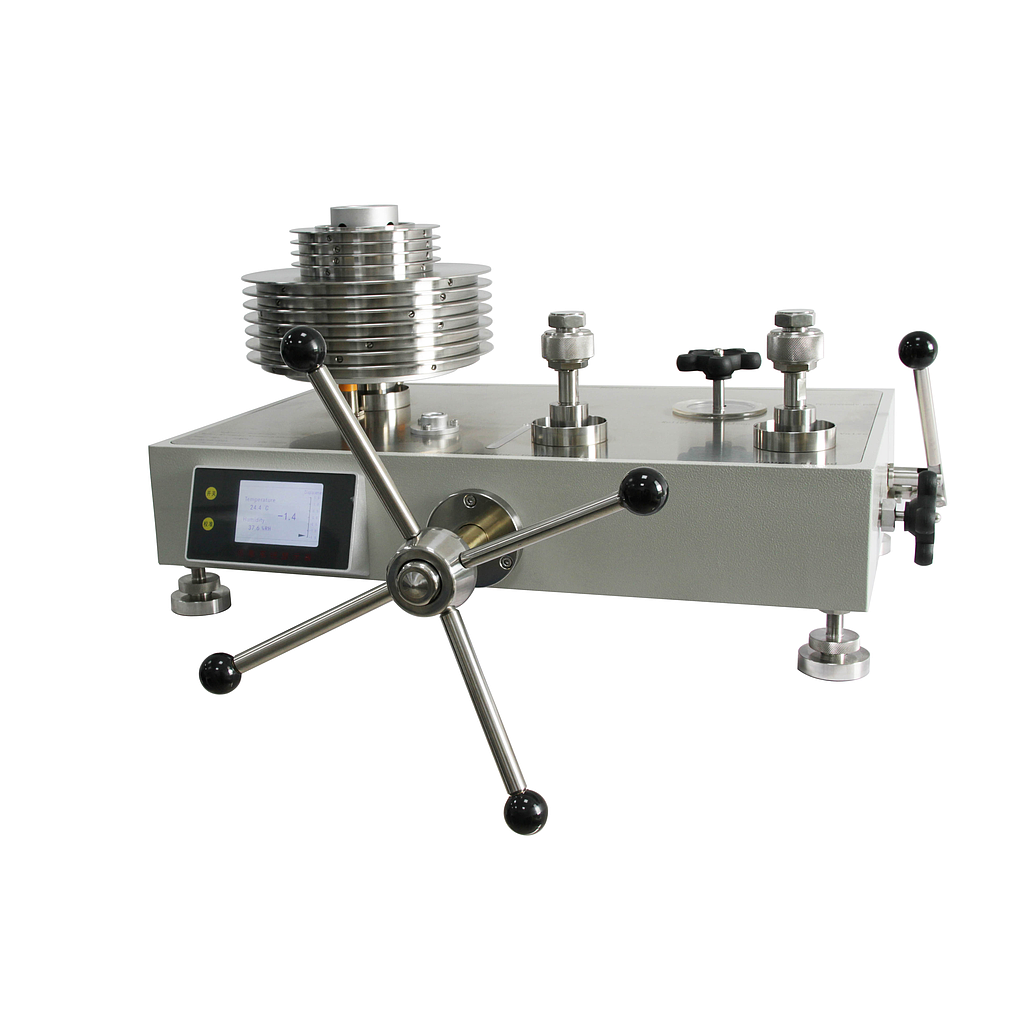

The model BL511 hydraulic deadweight testers are applicable in very wide variety of pressure calibration and measurement tasks. The piston cylinder assembly is the heart of the dead weight tester and responsible for its high accuracy. We manufactures piston cylinder with accuracies from 0.05% of reading up to 0.01% of reading. To give an idea of the manufacturing skills, the space between the piston and the cylinder is in the um range and can only be measured in a climate room.
KEY FEATURES
0.02%, 0.01%, 0.005% accuracy
Built-in filter in 400ml oil reservoir
Shows pressure regulator rod position
3.5 inch LED shows piston position, ambient temperature and humidity
Piston moving position indicator can be easily calibrated
The piston and cylinder is made of the high intensity, extreme hardness and lowest thermal expansion tungsten carbide, which density is 15 g/cm3, thermal coefficient of expansion is 16.5 ppm /℃
Five year warranty for piston stability
APPLICATION
Primary pressure calibration in lab
Precision pressure measurement
