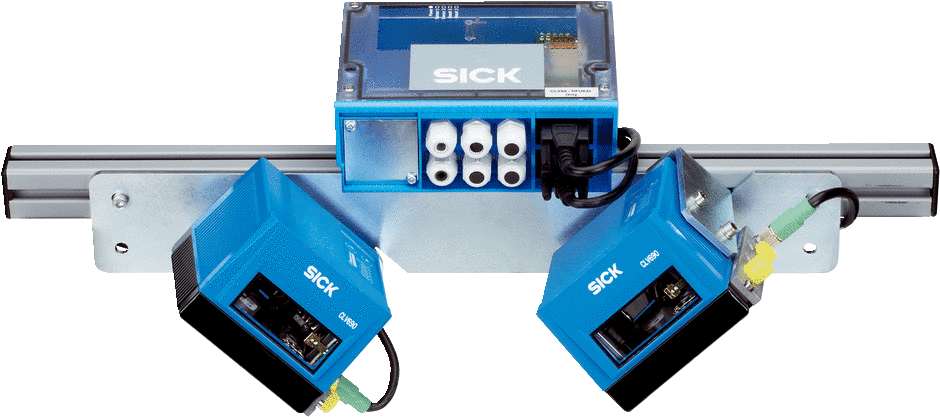

Twinhead CLV69x

In logistics, the classification of products based on product code reading is very important. With products constantly changing size, the code is pasted in different locations, the read barcodes quickly and accurately is difficult. Therefore, we have design barcode reading system in accordance with the above requirements.

Product information is printed on products as 1D bard code. We are used Laser Oscillating mirror technology has successfully met the 1D barcode reading for dimensional and dimensional products.

The system can interface via RS232, USB and Ethernet to help synchronize data quickly and accurately. Therefore, connecting to the control system of the factory is very simple and flexible

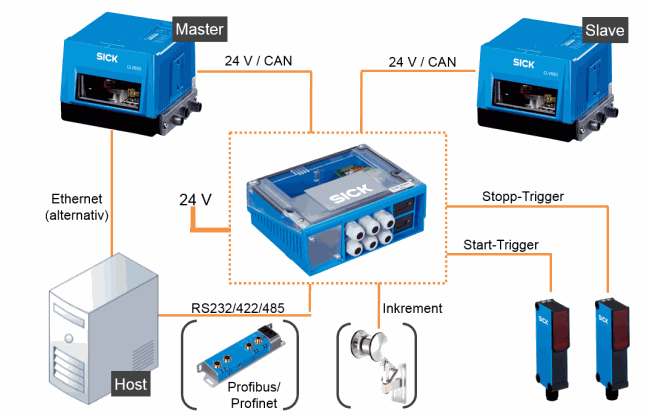

Diagram connection in the system

Detailed technical data

Ø Features

Covered conveyor width	800 mm
Focus	Auto focus
MTBF	100,000 h
MTTR	5 min
Applications	Simple OMNI applications Sorting processes Revenue recovery Goods receipt
Scanner design	Line scanner with oscillating mirror
Conveyor type	Belt strap Tray sorter Roller conveyor Crossbelt Pallet
Number of main components	Laser scanner: 2

Ø Mechanics/electronics

Dimensions, system (L x W x H)	1,100 mm x 1,280 mm x 1,745 mm
Connection modules	CDM420-0007

Ø Performance

Transport speed	0.1 m/s ... 2.5 m/s, Depending on code height
Minimum object distance	50 mm
Number of codes per reading interval	1 ... 50
Number of codes per scan	1 ... 20, Standard decoder 1 ... 6, SMART decoder

Ø Interfaces

Serial (RS-232, RS-422/-485)	Host: 300 baud ... 500 kBaud, AUX: 57.6 kBaud fixed
Ethernet	Host AUX, 10/100 MBit/s, TCP/IP
CAN bus	SICK CAN sensor network (master/slave)
PROFIBUS, PROFINET	Optional over external fieldbus module (CDF)
Optical indicators	6, LEDs, Ready, Result, laser, Data, CAN, LNK TX, bar graph display of percentage read rates (10 LEDs)

Technical data

Specifications

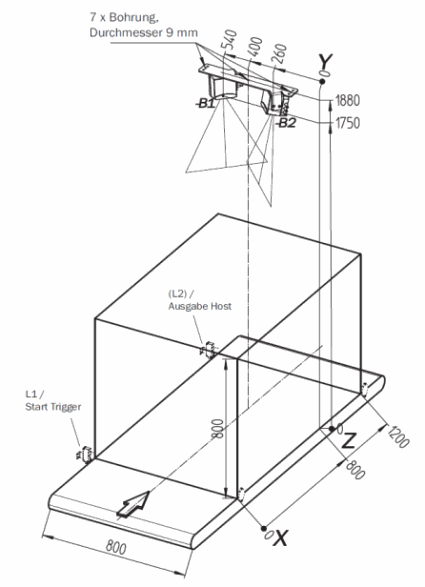

Mechanical drawing

Barcode

- Resolution code

- CLV690: 0,35mm

- CLV691: 0,5mm

- Height code ≥ 12mm

- Type code: Code 1D

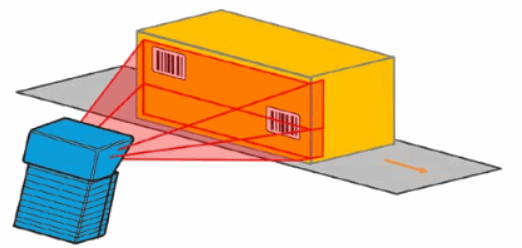

Reading field

- Maximum reading field width: 800mm

- Maximum reading field height: 800mm

- Reading distance: 950mm (1750mm- 800mm)

- Reading field length (L1 to L2): 1200mm

Conveyor speed

Resolution code: 0.35mm

- 1,0 m/s if code hight > 13mm

- 1,5m/s if code hight > 15mm

- 2,0m/s if code hight > 18mm

- 2,5m/s if code hight > 20mm

Resolution code: 0.5mm

- 1,0m/s if code hight > 16mm

- 1,5m/s if code hight > 18mm

- 2,0m/s if code hight > 21mm

- 2,5m/s if code hight > 23mm

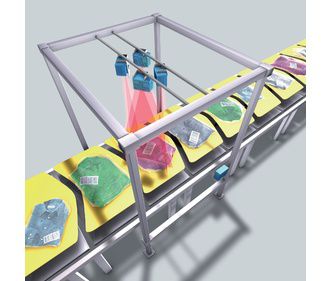

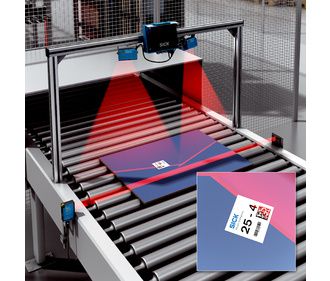

Application
