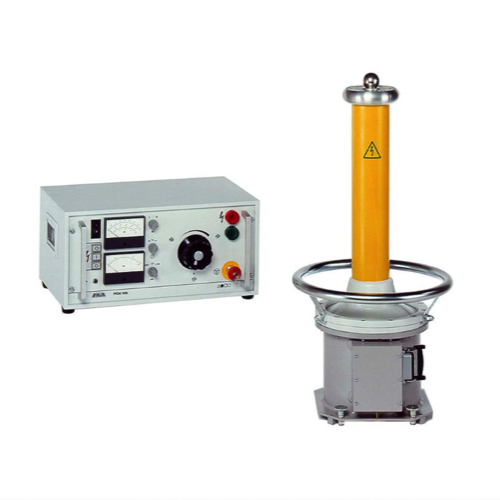

BAUR PGK 110 HB High-Voltage Test Device (200 – 260 V, 50/60 Hz, 2.5%)

Testing:

Output voltage:

AC: 0 – 80 kVrms

DC: 0 to ±110 kV

Output current (continuous):

AC: 14 mArms

DC: ±5 mA

Short-circuit current:

AC: 30 mArms

DC: ±17 mA

Accuracy:

Voltmeter (kV): 2.5%

Ammeter (mA): 2.5%

General:

Power supply:

200 – 260 V, 50/60 Hz

Option: 100 – 130 V, 50/60 Hz (with external auto transformer)

Power consumption:

Normal: 1,380 VA

In short-circuit: 2,650 VA

Ambient temperature (operational): 0°C to +45°C

Storage temperature: -20°C to +60°C

Relative humidity: Non-condensing

Dimensions:

Operating unit (W x H x D): Approx. 506 x 258 x 319 mm, (19“, 5 RU)

HV unit (Height / Diameter): Approx. 1,126 mm / Ø ca. 473 mm

Weight:

Operating unit: Approx. 17 kg

HV unit: Approx. 75 kg

Safety and EMC:

CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery

▪ PGK 110 HB AC/DC HV test set

▪ GDR 120-750 discharge and earth rod

▪ Connection cable, 5 m, for connecting the HV unit to the operating unit

▪ HV connection cable, 2.5 m, with connection clip

▪ Rectifier rod for DC voltage operation, screwed into the HV unit

▪ Resistance rod for AC voltage operation

▪ Wrench for changing the rectifier and resistance rod

▪ Earth cable, 3 m, with earth terminal

▪ Mains supply cord, 2.5 m

▪ User manual
