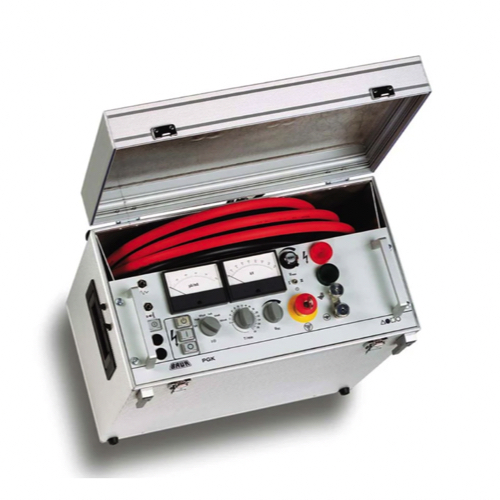

BAUR PGK 80 E DC High-Voltage Test Device (80 kV)

Testing:

DC voltage (negative): 0 – 80 kV

Output current (negative):

0.8 mA @ 80 kV

1.5 mA @ 70 KV

Short-circuit current (negative): 20 mA

Voltage measuring range:

Range I: 0 – 80 kV

Range II: 0 – 16 kV

Current measuring range: 20 nA to 1 µA / 10 µA / 100 µA / 1 mA / 10 mA / 100 mA

Accuracy of the voltmeter (kV): ±2.5%

Timer: 0 – 30 min

Max. discharge energy: 8,000 J at 1 discharge/15 min (ambient temperature 20°C)

General:

Power supply: 110/120 V, 220/230 V, 240 V, 50/60 Hz

Power consumption: 1,400 VA

Degree of protection: IP53 (in closed state)

Ambient temperature (operational): 0°C to +45°C

Storage temperature: -20°C to +60°C

Relative humidity: Non-condensing

Dimensions (W x H x D): Approx. 495 x 460 x 285 mm

Weight: Approx. 25 kg

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery

▪ BAUR PGK 80 E DC HV tester

▪ HV connection cable, 5 m, fix mounted

▪ Earth cable, 3 m, with earth terminal

▪ Operational earthing cable, 4 m, for current measurement

▪ Mains supply cord, 2.5 m

▪ User manual
