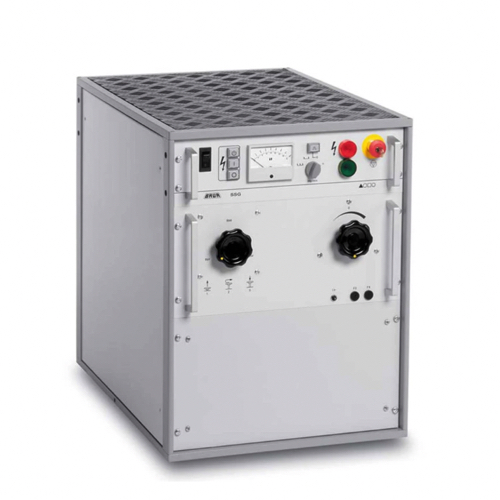

BAUR SSG 1500 Surge Voltage Generator (1536 Ws, 0 – 32 kV)

Mains supply: 220-230 V

Option: 110-120 / 240 V With external autotransformer or isolating transformer

Mains frequency: 45 Hz to 60 Hz

Max. power consumption (at short circuit): 5000 VA

Max. output voltage: 32 kV

Output voltage range: 0 - 8 kV, 0 - 16 kV, 0 - 32 kV

Max. surge energy: 1536 Ws

Impulse frequency: 20, 30 Imp. / min

Max. DC output current

Voltage range:

0 - 8 kV: 850 mA

0 - 16 kV: 425 mA

0 - 32 kV: 210 mA

Precision of the kV-meter: 1.5

Operating temperature range: -20 °C to +50°C

Weight without housing: 120 kg

Dimension of the housing (W x H x D): Approx. 514 x 645 x 730 mm

Delivery includes

● Surge voltage generator without accessories

● Mains connection cable (2.5 m)

● HV connection cable (4 m)

● Ground line (10 mm², 4 m)

● Jumper plug for Emergency-Off socket

● User manual

● for stand alone use a 19" housing is required (see datasheet)
