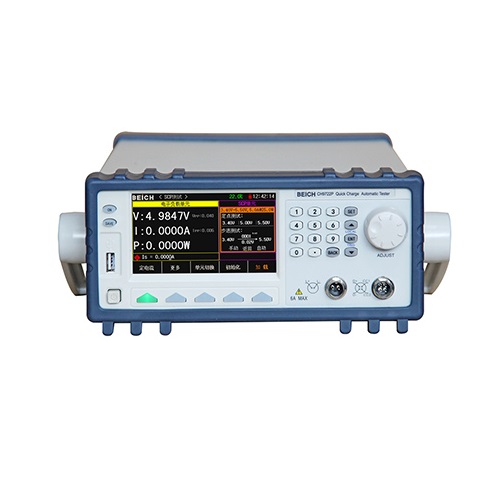

Beich CH9722P Fast Charging Automatic Tester (HUAWEI SCP/FCP; 60V; 6A; 150W)

Support Quick charge protocol: QC2.0/QC3.0/ QC4+PD2.0/PD3.0, USB PPS, MTKPE2.0, HUAWEI SCP/FCP, Samsung AFC, D+D-voltage test

Mode: CV, CC, CP, CR

Display: 4.3 inch TFT display

Max.input voltage: 60V

Max. input current: 6A

Max. input power: 150W

Voltage accuracy: 0.05%+0.03%FS

Current accuracy: 0.05%+0.05%FS

Min. resolution:

- Voltage: 0.1mV

- Current: 0.1mA

List auto test: CC, CV, CR, CP, SHORT; OPEN up to 15 steps of arbitrary combination programming

Battery test:

- Input voltage: 0.8-60V; Max. capacity: 999A/H

- Discharge time: 1-60000 seconds

Dynamic test: 0.1mS-999S; Error<2.5% + 0.1mS

Data storage: Internal 50 groups, External 100 groups

Remote test: Available

RS232C: Available

Protection: Over voltage, over current, over power, over temperature; Polarity inverse

Temperature and humidity: 0℃~40℃, ≤90%RH

Power supply: 198-242VAC 99V-121VAC 47.5-63Hz

Consumption: ≤40VA
