Sample specification: maximum 200 × 100mm
Sample thickness: 0.1-12mm
Load range (weights): 0.1-2Kg
Scratch length: 40-120mm
Scratching speed:1-50mm/s
Scratch gap:5-10mm
Scratch number: 1-17
Scratch stylus: ø0.5/1.0/2.0mm
External dimensions: 610×390×350mm
Power supply: 110/230V AC, 50/60Hz (optional)
Power:300W
Weight:37Kg
Conformity Standards: ISO1518-1, GB/T9279.1-2015
Introduction:

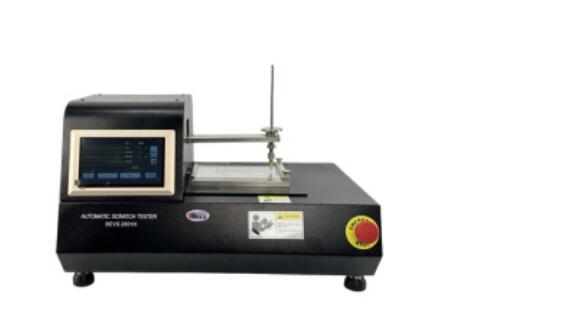

The BEVS 2801H Scratch Tester is used to evaluate the scratch resistance of single or composite coating systems for insulating coated panels. The scratch resistance of a coating is assessed by whether a steel needle breaks the coating or not, or by the maximum load at which the needle does not break the coating under a certain weight.
Features:
1. Large LCD screen design, touch screen operation
2. Chinese and English language can be selected
3. Settable Scratch length
4.Settable Scratch gap and the number of scratches
Ordering information:
BEVS 2801H Automatic Scratch Tester Plus
Datasheet
