Feature:
- High catalytic activity, huge adsorption quantity, low working temperature, efficient device.
- Renewable type, can be used repeatedly for a long time.
- Reuse without hydrogen and vacuum but with the few argon, safe and reliable.
- The valve are all stainless bellows type, without leakage.
- Double structures. One group works while the other group is reserved, long gas supplying system.
Original Gas Demand: Purity: ≥ 99.9%; Impurity Content: O2<1000ppm;H2O<1000ppm
Output Gas Purity: Purity: ≥ 99.999%; Impurity content: O2≤0.5PPm；H2O≤1PPm(Dew point≤-76℃)； CO+CO2≤0.1PPm；S,P Oxides≤0.1PPm； Number of dust particles(≥0.3μm)3-5s/L；
Operating Pressure: ≤0.8MPa
Max Flow Rate: ≤60L/min
Flow Rate Of Regenerating Argon: 500 ml/min
Regenerating Temperature Of The Absorber: 400±20℃
Work Temperature Of The Reactor: 300±20℃
Power Supply: AC110/220V±10%, 50/60Hz
Consumption: 1600W
External Size (W*D*H) mm: 420*600*1230
Package Size (W*D*H) mm: 510*710*1300
Net Weight(kg): 135
Gross Weight(kg):170
Optional Accessory: N2 removal tower

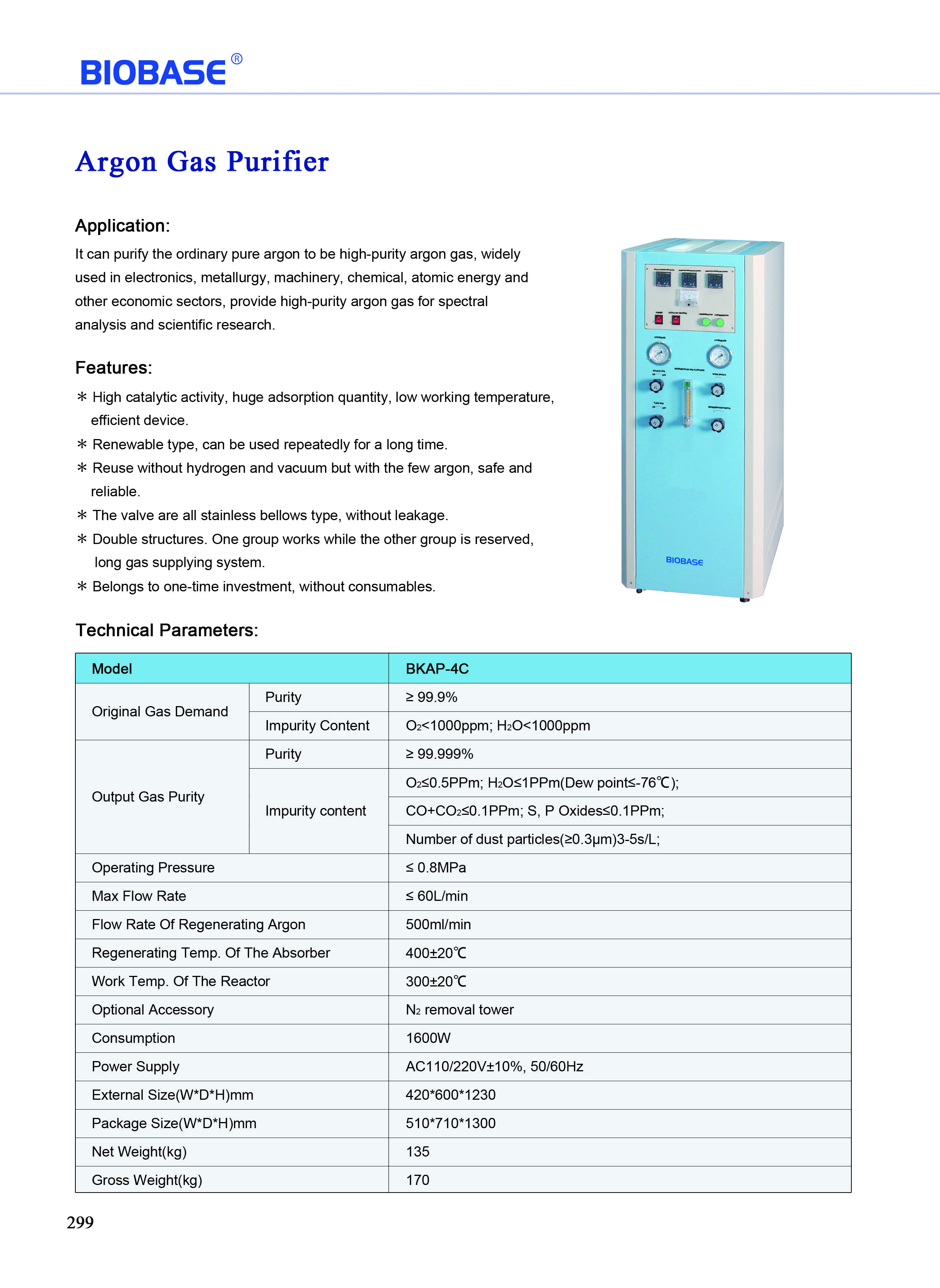

Brochure
