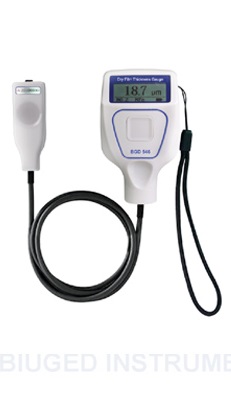

Biuged BGD 546 Precise Dry Film Thickness Gauge (External cable probe, Metal materials, 0.0-5,000μm)
Manufacturer: Biuged Model: BGD 546 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Probe: External cable probe
Substrate: Metal materials
Measuring Range: 0.0-5,000μm
Resolution: 0.1μm （＜100μm）；1μm（100μm～999μm）；10μm（＞1000μm）
Accuracy: ≤±（3% reading+2μm）
Minimum Curvature: Convex: 5mm / Concave: 25mm
Minimum Measuring Area: 6mm2
Minimum Substrate Thickness: Fe:0.2mm / NFe:0.05mm
Display: 128×48 dot matrix LCD
Power Supply: 2pcs of 1.5V AAA alkaline battery
Dimension/Weight: 101mm×62mm×28mm/79g (with battery)
