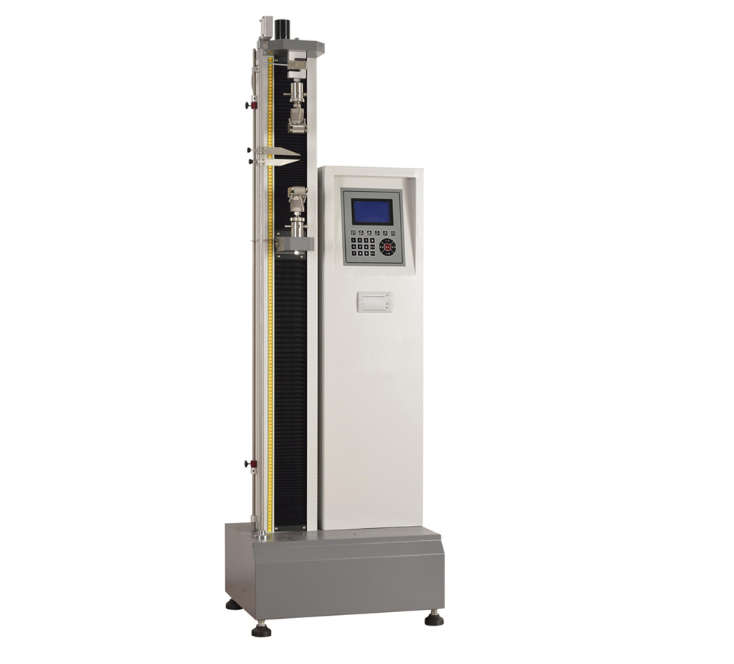

Biuged BGD 575 Microcomputer Table Electronic Tensile Machine (1%～100% FS)

■ Max. Capacity (Optional)：50N、100N、200N、500N、1000N、2000N、5000N

■ Precision Grade：Grade 1

■ Measuring Range of Test Force：1%～100% FS (Full Range)

■ The Indicated Error of Test Force：≤±1%

■ The Resolution of Test Force：±1/250000 of Max. Force (There is no grade in the whole pr℃ess, and keep the constant resolution throughout the whole pr℃ess.)

■ The Error of Indicated Displacement：≤±0.2% (Indicating Value)

■ The Resolution of Displacement：0.015mm

■ The Valid Width of Test：120mm

■ The Range of Tensile Speed：100～500 mm/min (Adjustable)

■ The Valid Length of Tensile (Excluding Clamp Holder)：1100mm

■ External Dimensions：570mm×410mm×1800mm（L×W×H）

■ Weight：150 KG

■ Power Supply：220V/50Hz

■ Power：400 W
