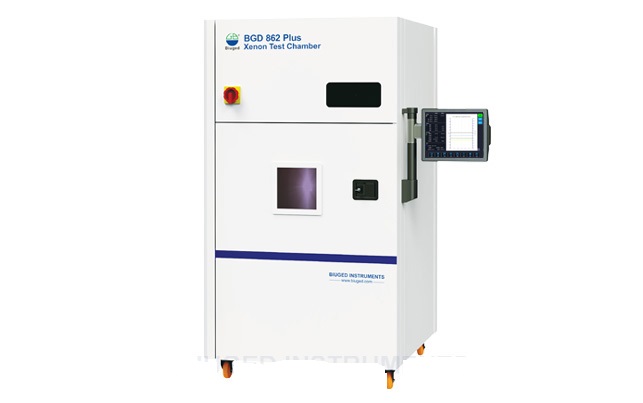

Biuged BGD 862 Plus Big Xenon Test Chamber (6,500 cm2)

■ Xenon Lamp：6.5 KW water cooling long arc xenon lamp

■ Light Filter：Import originally from USA brand, can simulate indoor or outdoor sunshine spectrum

■ Exposure Area：6,500 cm2（63-65 pcs standard samples of 15cm×7cm size）

■ Monitoring Method to Irradiance: Four types：340nm，420nm，300nm～400nm，300nm～800nm/ Showing at the same time

■ Adjustable Irradiance Range：

1, Filters: Daylight

- Combinating Filters:

Inner Filter: Type S Boro

Outer Filter: Type S Boro

- Adjustable Range of Irridiance（W/㎡）:

Lamp Power（KW）: 2.5～7.5

340nm: 0.25～1.26

420nm: 0.59～2.76

300-400nm: 29～141

2, Filters: Window Glass

- Combinating Filters:

Inner Filter: Type S Boro

Outer Filter: Soda Lime

- Adjustable Range of Irridiance（W/㎡）:

Lamp Power（KW）: 2.5～7.5

340nm: 0.23～1.10

420nm: 0.61～2.76

300-400nm: 28～129

3, Filters: Extended UV

- Combinating Filters:

Inner Filter: Quartz

Outer Filter: Type S Boro

- Adjustable Range of Irridiance（W/㎡）:

Lamp Power（KW）: 2.5～7.5

340nm: 0.29～1.50

420nm: 0.59～2.79

300-400nm: 32～161

■ Lifetime of lamps: 2,000 hours

■ Adjustable Range of BPT: RT~110℃

■ Adjustable Range of BST: RT~120℃

■ Adjustable Range of Working room: RT~70℃（Dark）

■ Temperature Stability: ±1℃

■ Temperature Uniformity: ≤2℃

■ Temperature Deviation: ≤ 1℃

■ Adjustable Humidity: Light：10%-75% Dark：10%-95%

■ Rotate speed of sample: 1 r/min（circle as lamp centre）

■ Spray Function: Can set spray continuous time and spray period

■ Water Demands: High purity deionized water（Conductivity<2us/cm）

■ Compressed Air: Clean，oilless compressed air with 0.5MPa pressure，Max. air supply is near 60L/min. Average air consumption is 10L/min～30L/min（Depends on testing standard）

■ Flow of Deionized Water: The water consumption for 24 hours is 300L-400L.（Taking the continuous run of cycle A for 24 hours in ISO 11341 standard as an example）

■ Power Supply: AC380V±10%，Three-phase four-wire 50Hz；Max. Current 50A，Max. Power 9.5KW

■ Overall Size: 1,220mm×1,200mm×1,970mm（L×W×H）

■ Net Weight: 500 KG

Datasheet
