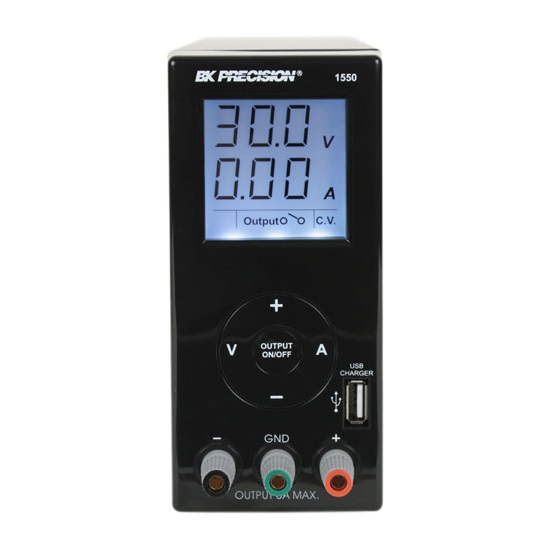

BKPRECISION 1550-220V Switching DC Power Supply with USB Charger (1-36V, 0-3A)

MAIN OUTPUT:

Output Voltage Adjustable Range: 1.0 – 36 VDC

Output Current Adjustable Range: 0 – 3 A

Voltage Regulation:

Load (10 % to 100 %): ±50 mV

Line (min to max): ±20 mV

Ripple: ±5 mV rms

Noise (Peak to Peak): ±50 mV

Current Regulation:

Load (10 % to 100 %): ±20 mA

Line (min to max): ±20 mA

USB OUTPUT:

Output Voltage: 5 V (±10 %)

Output Current: 400 mA (±10 %)

Load Voltage Regulation: 80 mV (±10 %)

Ripple & Noise (no load rms): 8 mV (±10 %)

OTHER:

AC Input: 230 VAC

Efficiency at Max Power: 83 % (±10 %)

Voltmeter and Ammeter Display: 3 Digit

Voltmeter Accuracy: ±1 % of rdg. ± 5 digits

Switching Operation Frequency: 80 kHz to 120 kHz

Ammeter Accuracy: ±1 % of rdg. ± 5 digits

LCD Indication: CC, CV, Amp, Volt, Output ON-OFF

GENERAL:

Protection: Short Circuit, Overload, Over Temperature, Over Voltage

Dimensions (W x H x D): 2.8” x 6.0” x 9.8” (70 x 150 x 250 mm)

Weight: 4.4 Lbs. (2 kgs)
