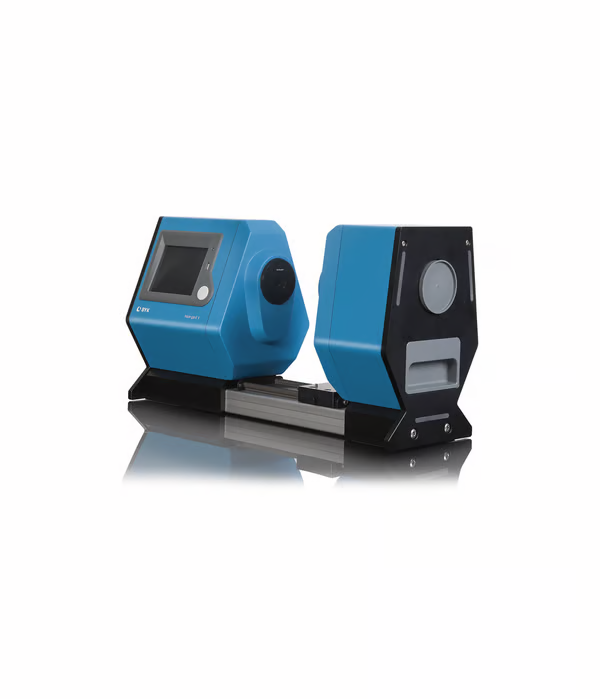

BYK haze-gard i Transparency and haze meter

Illuminants: CIE-C, CIE-A (ASTM D1003); CIE-D65 (ISO 13468, ISO 14782)

Spectral Response: CIE luminosity function y

Geometry: 0° / diffuse

Measurement Area: ø 18 mm (0.7 in)

Sample Port: ø 25.4 mm (1.0 in)

Measurement Range: 0 - 100 %

Repeatability: ± 0.1 units (standard deviation)

Reproducibility: ± 0.4 units (standard deviation)

Memory: 5000 readings

Interface: LAN, USB 2.0, additional front USB-port for memory stick

Power Supply: 115 V / 230 V self adapting

Operating Temperature: +10 to 40 °C (+50 to 104 °F)

Storage Temperature: 0 to 50 °C (+32 to 122 °F)

Dimensions: 62 x 33 x 22 cm (24 x 13 x 9 in)

Weight: 18 kg (40 lbs)

Datasheet
