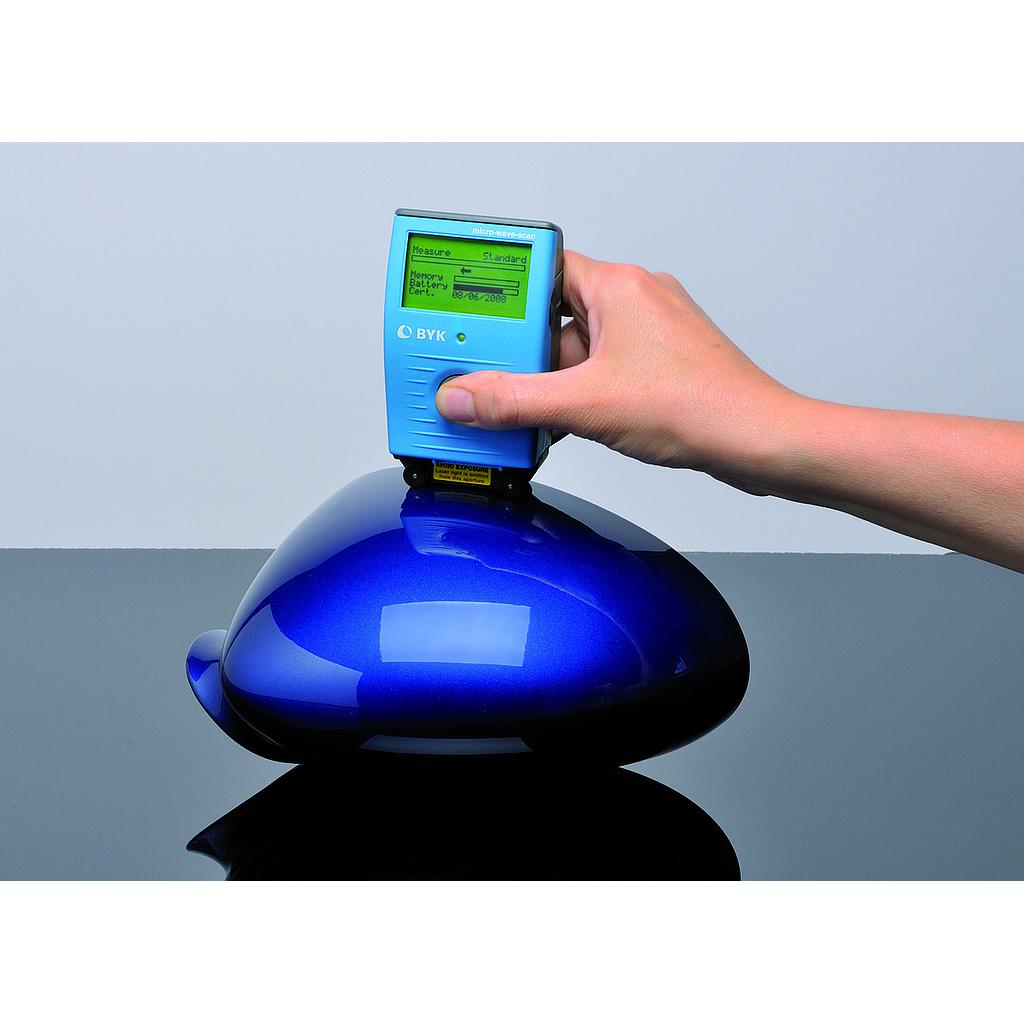

BYK micro-wave-scan Orange peel meter (High Gloss Surfaces, du < 40)

Technical Specifications

Application: High gloss surfaces, du < 40, linear range

Structure Spectrum:

du: < 0.1 mm

Wa: 0.1 to 0.3 mm

Wb: 0.3 to 1 mm

Wc: 1 to 3 mm

Wd: 3 to 10 mm

Repeatability (Std. Dev.): 8% or > 0.8

Reproducibility (Std.Dev.): 12% or > 1.2

Object Curvature: radius > 300 mm

Scan Length: 20 cm (du, Wa...Wd, L, S, DOI) 10 cm (du, Wa...Wd, L, S, DOI) 5 cm (du, Wa...Wd, L, S, DOI) 0 cm (du, Wa, Wb, DOI)

Resolution: 375 Points/cm

Min. Sample Size: 25 mm x 40 mm

Measurement Area: 4 mm x scan length

Light Source: Laser diode, LED

Laser Energy: < 1mW (Laser class 2)

General

Memory: 2000 readings

Interface: USB port

Languages: English, French, German, Italian, Spanish, Japanese, Portuguese

Power supply: rechargeable battery pack or 2 AA batteries, approx. 1000 readings

Weight: 0.25 kg

Weight: 0.6 lb

Operating temperature: 10 - 40 °C

Storing temperature: 0 - 60 °C

Operating temperature: 50 - 104 °F

Storing temperature: 32 - 140 °F

Relative humidity: up to 85 % at 35 °C (95 °F) non-condensing

Dimensions: L x W x H: 70 x 40 x 120 cm

Dimensions: L x W x H: 2.7 x 1.6 x 4.7 in

Instrument

Checking tile (4829)

Docking station with USB cable (4857)

smart-process Software with 2 Licensees for download (4831)

2 rechargeable battery packs (4827)

Battery holder for AA batteries

2 Batteries

Certificate

Manual

Carrying case and belt case

1-day training
