CAR INFOTAINMENT SOLUTION

MARKET DEMANDS

[%text-img-same-line img-url="/web/image/610178" img-align="left" img-width="50%"%]

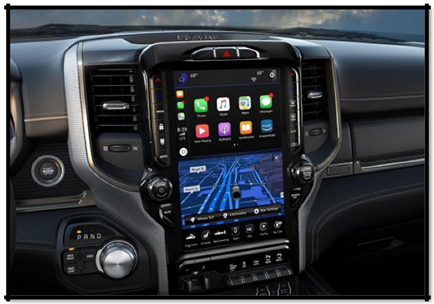

Technology Evolution

Car infotainment system gives user a wider scope of entertainment service, provide important real time information and much better experience while on the road.

Infotainment module consist of building blocks including highly integrated and scalable processors for car radio and audio systems and displays, all standard communication transceivers, positioning devices and sensors.

[%end-text-img-same-line%]

Our Solution

Worldsoft car infotainment functional test system is designed to provide comprehensive verification of individual modules or the complete infotainment assembly.

Our solution integrates high performance test instruments to meet reliable result, customized hardware to firmly hold the device under tests while testing and user-friendly software that allow customer to edit or add their own test plan.

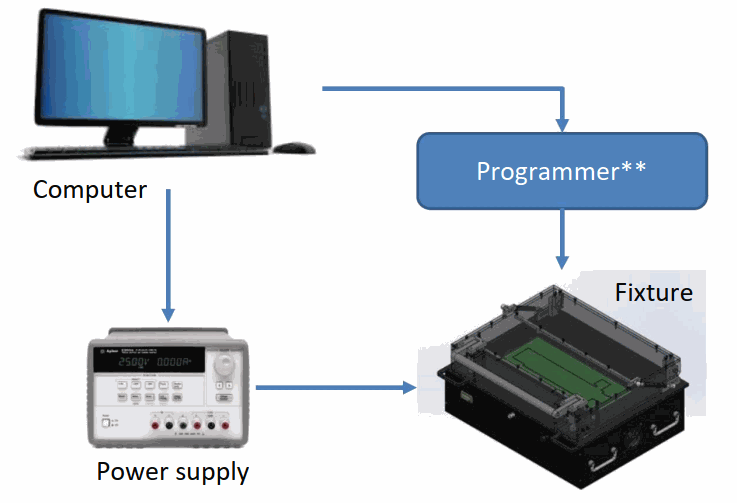

FLASHING

[%text-img-same-line img-url="/web/image/610182" img-align="right" img-width="75%"%]

Including:

- Micom (µC)

- ISP

- EMMC

[%end-text-img-same-line%]

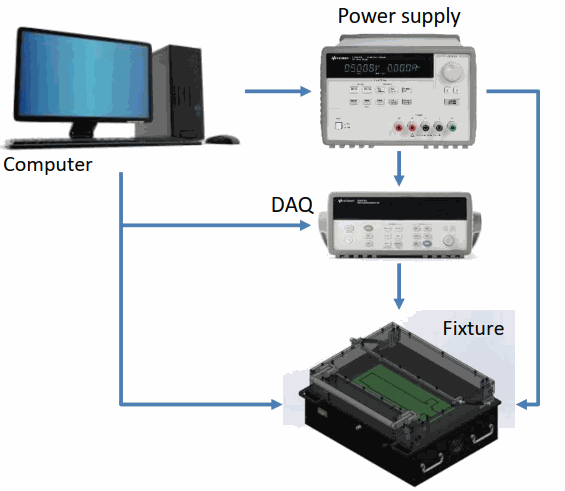

FUNCTIONAL

[%text-img-same-line img-url="/web/image/610186" img-align="right" img-width="75%"%]

Test coverage:

• IO Port

• Digital

• Analog

• Power check

• Button key

• RTC

• Memory dump

• USB, UART, SPI

• Current sense

[%end-text-img-same-line%]

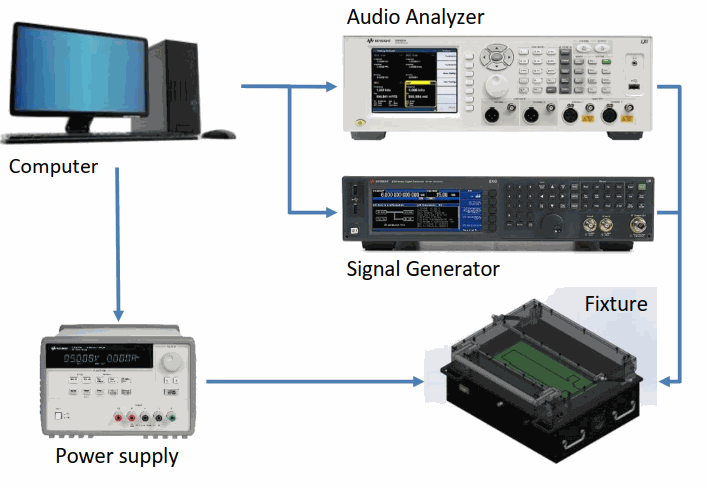

WIRELESS

[%text-img-same-line img-url="/web/image/610210" img-align="right" img-width="75%"%]

Test coverage:

• Miracast

• Bluetooth

• Wifi

• *Cellular

• *GPS [%end-text-img-same-line%]

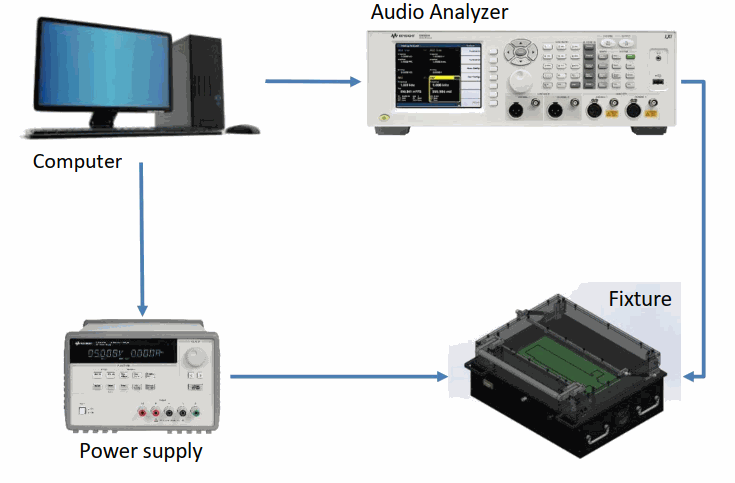

AUDIO

[%text-img-same-line img-url="/web/image/610217" img-align="right" img-width="75%"%]

Test coverage:

- FM

- AM

- RDS

- AUX

- MIC

- Volume & mute

[%end-text-img-same-line%]

ONE-STOP SOLUTION

[%text-img-same-line img-url="/web/image/610219" img-align="right" img-width="50%"%]

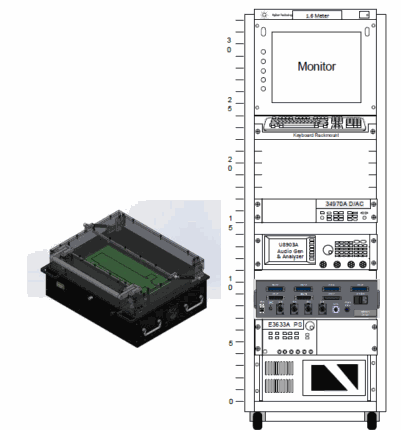

All-in-One software integrated infotainment functional test system (WST-2208005-01)

• 5 test groups, 1 test sequence

• DUT: PCB assembly level

• 20-channel multiplexer (DMM) module (expandable)

• 20-channel general-purpose switching module (expandable)

• Fast wireless test (connectivity check only)

• Instrument control: GPIB/LAN/USB

• 33U full-size instrument rack

• EasySwap interconnect module for multiple fixtures

• Test time performance: 115 seconds per cycle test

• Customizable for complete unit level testing

[%end-text-img-same-line%]
