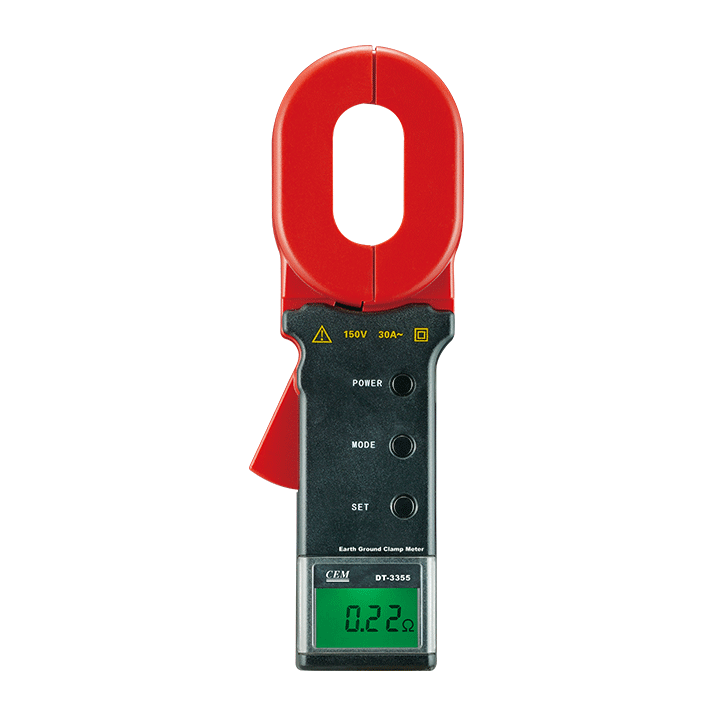

CEM DT-3355 Earth Ground Clamp Meter (0.01~1000Ω, 0~20A)

  • Manufacturer:CEM
    Model: DT-3355
    Guarantee: 12 Month
  • Contact
  •  Call for best price

     Hanoi city: (024) 35.381.269

     Danang city: (0236) 374.77.11

     HCM city: (028) 38.119.636

Function: Max Range - Max Resolution - Basic Accuracy

Resistance: 0.01~1000Ω  ;  0.001Ω  ;  ±(1.0%+10d)

Current: 0 ~ 20 A  ;  1mA  ;  ±(2.5%+2d)

Size (H x W x D): 288mm x 100mm x 95mm

Weight: 1154g (for long jaw); 1120g (for round jaw).


Accessories: Gift box with carrying case and 9V battery.

Detail

Datasheet


Features

Large LCD display with backlight

Span of Jaw: 28mm for a long jaw; 32mm for a round jaw:

Protection Level: Double insulation

Structural Feature: In the jaw way

Range Shift: Automatic

External Magnetic Field: 40A/m

External Electric Field: 1V/m

Single Measuring Time: 1 second

Measurement Resistance Frequency: 1kHz

Maximum Resistance Measurement Resolution: 0.001 Ω

Resistance Measurement Range: 0.01-1000 Ω
