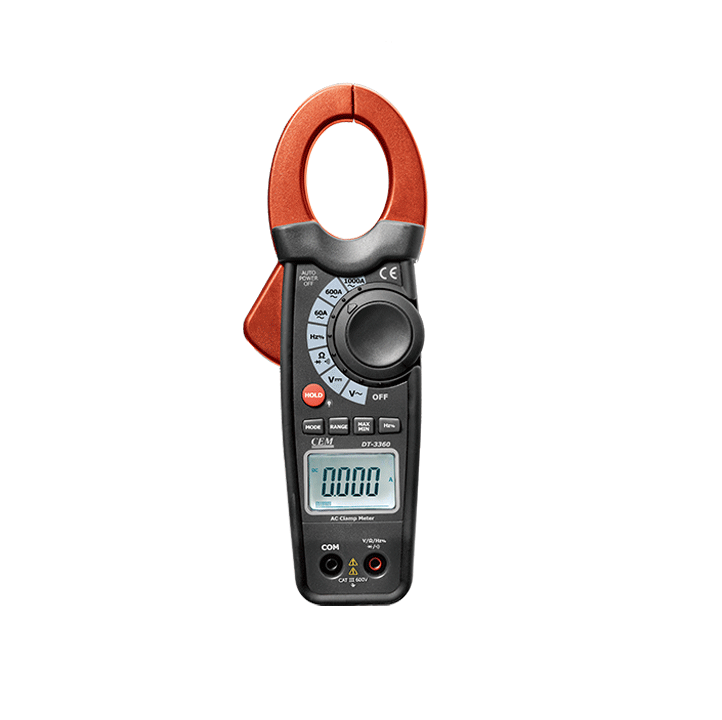

CEM DT-3367 AC/DC Clamp Meters (AC/DC-1000A,600V True RMS)

  • Manufacturer:CEM
    Model: DT-3367
    Guarantee: 12 Month
  • Contact
  •  Call for best price

     Hanoi city: (024) 35.381.269

     Danang city: (0236) 374.77.11

     HCM city: (028) 38.119.636

Function: Max. Range - Basic Accuracy - Max. Resolution

Current DC: 1000A  ;  ±(2.5%+5d)  ;  1mA

Current AC: 1000A  ;  ±(3.0%+4d)  ;  10mA

Voltage DC: 600V  ;  ±(0.8%+2d)  ;  0.1mV

Voltage AC: 600V  ;  ±(1.0%+4d)  ;  0.1mV

Resistance: 60MΩ  ;  ±(1.0%+4d)  ;  0.1Ω

Capacitance: 4000µF  ;  ±(3.0%+5d)  ;  0.01nF

Frequency: 10MHz  ;  ±(1.2%+3d)  ;  0.001Hz

Duty Cycle: 99.90%  ;  ±(1.2%+3d)  ;  0.10%

Temperature: 1000ºC/1832ºF  ;  ±(3.0%+3d)  ;  0.1ºC/ºF

Continuity check: Threshold 40Ω, test current <0.5mA

Diode test: Test current of 0.3mA typical, open circuit voltage <3V DC typical

Size (H x W x D): 229mm x 80mm x 49mm

Weight: 303g


Accessories: Test leads, gift box with carrying case, 9V battery, Temperature probe (3361/3363/3367/3366/3368)


Detail

Datasheet


Features

DT-3360

DT-3361

DT-3363

DT-3367

DT-3368

Digital display counts

6000

6000

6000

6000

6600

Analog Bargraph/Segments

*/60

*/60

*/60

*/60

*/60

Electronic overload protection

*

*

*

*

*

Continuity buzzer & Diode check

*

*

*

*

*

Data Hold function

*

*

*

*

*

DCA Zero function

*

*

*

Min/Max Hold function

*

*

*

*

*

Auto Power Off

*

*

*

*

*

Low battery indication

*

*

*

*

*

AC/DC Current

AC current

AC current

*

*

*

True RMS measurements

*

*

1.2” (30mm) Clamp jaw opening

*

*

*

*

Inrush current function

*



Function

Max. Range

Basic Accuracy

Max. Resolution

DT-3360

DT-3361

DT-3363

DT-3367

DT-3368

Current DC

1000A

±(2.5%+5d)

1mA

*

*

*

Current AC

1000A

±(3.0%+4d)

10mA

*

*

*

*

*

Voltage DC

600V

±(0.8%+2d)

0.1mV

*

*

*

*

*

Voltage AC

600V

±(1.0%+4d)

0.1mV

*

*

*

*

*

Resistance

60MΩ

±(1.0%+4d)

0.1Ω

*

*

*

*

66MΩ

Capacitance

4000µF

±(3.0%+5d)

0.01nF

*

*

*

*

40mF

Frequency

10MHz

±(1.2%+3d)

0.001Hz

*

*

*

*

10kHz

Duty Cycle

99.90%

±(1.2%+3d)

0.10%

*

*

*

*

*

Temperature

1000ºC/1832ºF

±(3.0%+3d)

0.1ºC/ºF

*

*

*

*

Inrush Current

1000A

0.1A

±(2.0%+5d)

*

Continuity check

Threshold 40Ω, test current <0.5mA

Diode test

Test current of 0.3mA typical, open circuit voltage <3V DC typical
