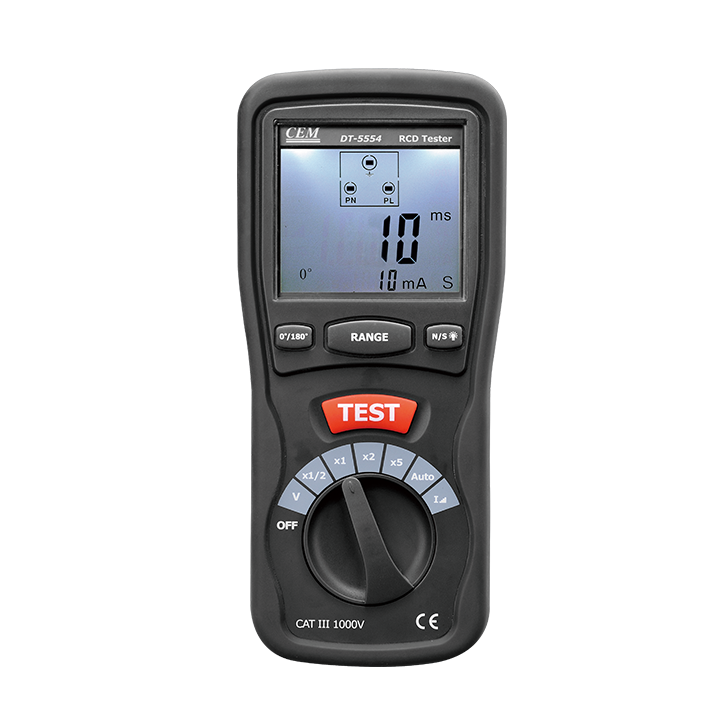

CEM DT-5554 RCD Tester (500A)
Manufacturer: CEM Model: DT-5554 Origin: China Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measurement specifications: Ranges - Resolution - Accuracy
Nominal test current: 10/30/100/500mA/1A ; ___ ; (-2%+10%)+6Digits
Current selection: 0.5x, 1x, 2x, 5x nominal current ; ___ ; ___
Trip time:
10-2000 ms at 0.5x ; 1 ms ; ±(2%rdg. + 2Digits)
10-500 ms at 1x ; 1 ms ; ±(2%rdg. + 2Digits)
10-150 ms at 2x ; 1 ms ; ±(2%rdg. + 2Digits)
10-40 ms at 5x ; 1 ms ; ±(2%rdg. + 2Digits)
Ramp test: 0.4x to 1.4 times nominal rated current ; ___ ; 10%
Mains voltage: 230(+10%/ -10%)V ; 1V ; ±(2%rdg. + 2Digits)
Size (H x W x D): 200mm x 92mm x 50mm
Weight: 582g
Accessories: Test leads and “AA” Battery x 6, gift box with carrying case.
